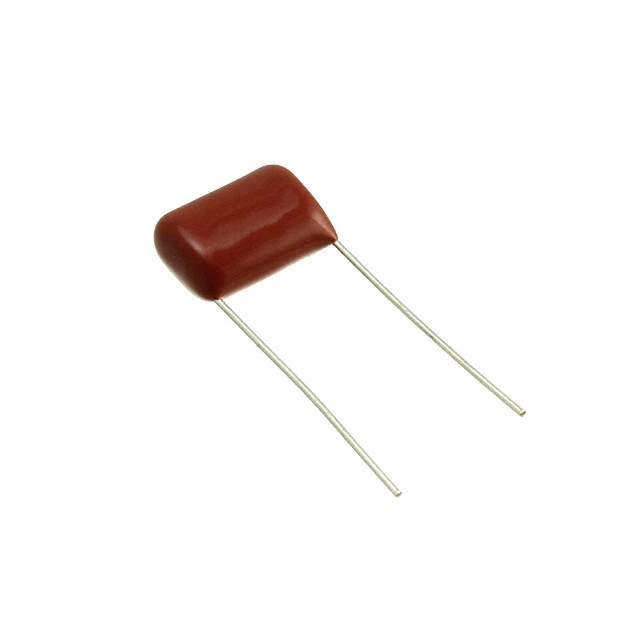

Specification	473MPR630K

Applications	DC Filtering, DC Link
Capacitance	47 nF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	3.763 Ohm
Features	Low ESR
Height - Seated (Max)	0.532 in
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	0.709 in
Size / Dimension Width	0.335 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V
Voltage Rating - DC	630 V
