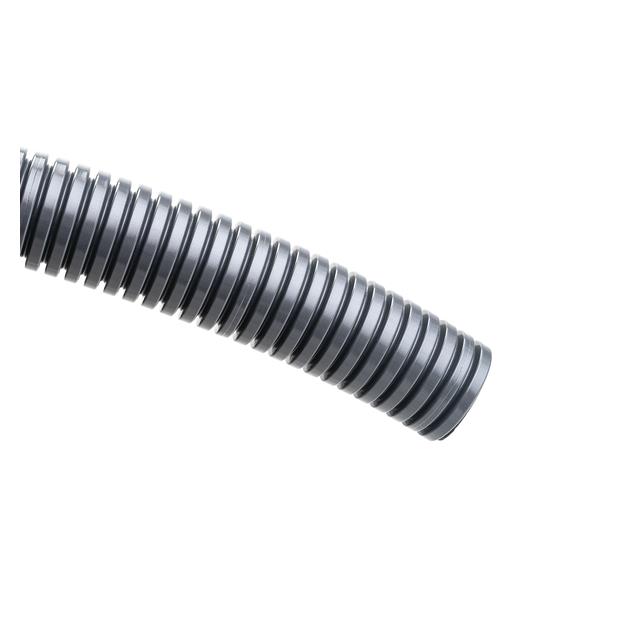

Specification	166-90291

Abrasion Protection	Abrasion Resistant
Diameter - Inside	0.9 in
Diameter - Outside	1.13 in
Environment Protection	UV Resistant
Features	Dust Resistant, Self Extinguishing, Solvent Resistant
Liquid Protection	Oil Resistant, Fluid Resistant
Material	Halogen Free, Nylon 6, Polyamide (PA6)
Material Flammability Rating	UL94 V-2
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Type	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated

166-90 Series

Spiral Wraps, Sleeves, Tubing & Conduit HG-LW1500 PA6 LW CONDUIT 50

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Diameter - Inside	Color	Material	Type	Abrasion Protection	Length	Diameter - Outside	Features	Liquid Protection	Type Attributes	Environment Protection	Accessory Type	For Use With/Related Products	Features Size (in)
HELLERMANNTYTON 166-90212	110 °C	-50 °C	1.4 in	Black	Halogen Free Nylon 12 Polyamide (PA12)	Protective Hose Wire Loom	Abrasion Resistant	50 ft	1.68 in	Dust Resistant Impact Resistant Self Extinguishing Shock Resistant Solvent Resistant Vibration Resistant	Fluid Resistant Oil Resistant	Convoluted Corrugated	UV Resistant
HELLERMANNTYTON 166-90213	110 °C	-50 °C	1.86 in	Black	Halogen Free Nylon 12 Polyamide (PA12)	Protective Hose Wire Loom	Abrasion Resistant	50 ft	2.15 in	Dust Resistant Impact Resistant Self Extinguishing Shock Resistant Solvent Resistant Vibration Resistant	Fluid Resistant Oil Resistant	Convoluted Corrugated	UV Resistant
HELLERMANNTYTON 166-90482					Chloroprene Rubber (CR)					0.75" (19.0mm) Diameter				Sealing Ring
HELLERMANNTYTON 166-90189					6 Nylon 6 Polyamide (PA66)									Conduit End Cap
HELLERMANNTYTON 166-90199	120 °C	-40 °C	1.12 in	Black	Halogen Free Nylon 6 Polyamide (PA6)	Protective Hose Wire Loom	Abrasion Resistant	50 ft	1.36 in	Dust Resistant Self Extinguishing Solvent Resistant	Fluid Resistant Oil Resistant	Convoluted Corrugated
HELLERMANNTYTON 166-90021					6 Nylon 6 Polyamide (PA66)									Locknut	NPT 1" Thread - Cable Glands
HELLERMANNTYTON 166-90361					Brass Nickel Plated					NPT Thread				Adapter	Conduit Tubing	0.5 in
HELLERMANNTYTON 166-90011					6 Nylon 6 Polyamide (PA66)									Reducing Adapter	Conduit Tubing
HELLERMANNTYTON 166-90114					6 Nylon 6 Polyamide (PA66)									90° Adapter
HELLERMANNTYTON 166-90359					Brass Nickel Plated									Locknut
