Specification	PTSLR08056V075

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max)	750 mA
Current - Max	50 A
Current - Trip (It)	1.5 A
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Concave, 0805 (2012 Metric)
Package Features	Concave
Package Length	2012 mm
Package Name	0805
Resistance - Initial (Ri) (Min)	40 mOhms
Resistance - Post Trip (R1) (Max)	160 mOhms
Size / Dimension Length	0.083 in
Size / Dimension Width	0.053 in
Thickness (Max)	0.028 in
Time to Trip	200 ms
Type	Polymeric
Voltage - Max	6 V

PTSLR Series

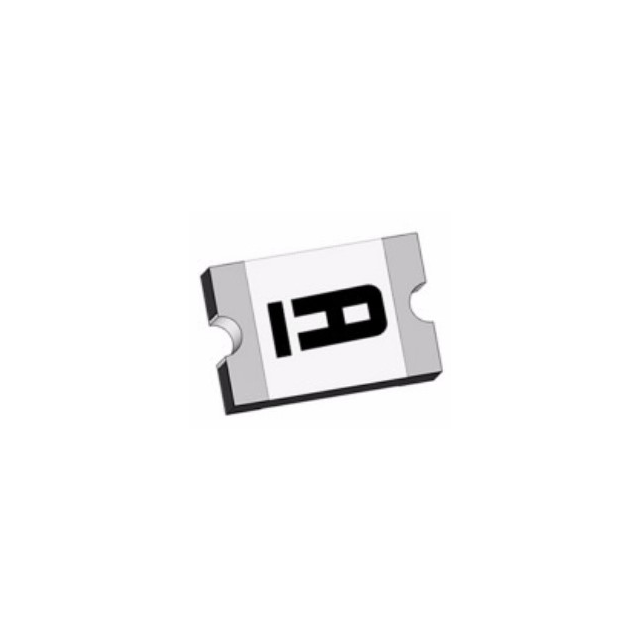

Resettable Fuses - PPTC 6V 4.0A-HD 50A MAX

Part	Type	Resistance - Initial (Ri) (Min)	Package Features	Package / Case	Package Name	Time to Trip	Current - Max	Current - Trip (It)	Size / Dimension Length	Size / Dimension Width	Current - Hold (Ih) (Max)	Thickness (Max)	Voltage - Max	Operating Temperature (Min)	Operating Temperature (Max)	Resistance - Post Trip (R1) (Max)	Mounting Type	Approval Agency	Package Length
Eaton - Electronics Division PTSLR18126V260	Polymeric	3 mOhms	Concave	1812 (4532 Metric) Concave	1812	2 s	50 A	6 A	0.179 in	0.128 in	2.6 A	0.028 in	6 V	-40 °C	85 °C	24 mOhms	Surface Mount	cURus TUV
Eaton - Electronics Division PTSLR12066V380
Eaton - Electronics Division PTSLR12066V380	Polymeric	2 mOhms		1206 (3216 Metric) Concave		5 s	50 A	8 A	0.128 in	0.065 in	3.8 A	0.047 in	6 V	-40 °C	85 °C	14 mOhms	Surface Mount	cURus TUV
Eaton - Electronics Division PTSLR12066V350	Polymeric	3 mOhms		1206 (3216 Metric) Concave		5 s	50 A	7 A	0.128 in	0.065 in	3.5 A	0.047 in	6 V	-40 °C	85 °C	18 mOhms	Surface Mount	cURus TUV
Eaton - Electronics Division PTSLR12066V400	Polymeric	1 mOhms		1206 (3216 Metric) Concave		2 s	50 A	8 A	0.128 in	0.065 in	4 A	0.047 in	6 V	-40 °C	85 °C	14 mOhms	Surface Mount	cURus TUV
Eaton - Electronics Division PTSLR12066V500	Polymeric	1 mOhms		1206 (3216 Metric) Concave		2 s	50 A	10 A	0.128 in	0.065 in	5 A	0.047 in	6 V	-40 °C	85 °C	13 mOhms	Surface Mount	cURus TUV
Eaton - Electronics Division PTSLR12066V200	Polymeric	5 mOhms		1206 (3216 Metric) Concave		500 ms	50 A	4 A	0.128 in	0.065 in	2 A	0.047 in	6 V	-40 °C	85 °C	0.04 Ohms	Surface Mount	cURus TUV
Eaton - Electronics Division PTSLR08056V175
Eaton - Electronics Division PTSLR12106V200	Polymeric	5 mOhms	Concave	1210 (3225 Metric) Concave	1210	3 s	50 A	4 A	0.127 in	0.101 in	2 A	0.028 in	6 V	-40 °C	85 °C	24 mOhms	Surface Mount	cURus TUV	3225 Metric
Eaton - Electronics Division PTSLR12066V300	Polymeric	3 mOhms		1206 (3216 Metric) Concave		4 s	50 A	6 A	0.128 in	0.065 in	3 A	0.047 in	6 V	-40 °C	85 °C	26 mOhms	Surface Mount	cURus TUV
