1086506

Active

Phoenix Contact

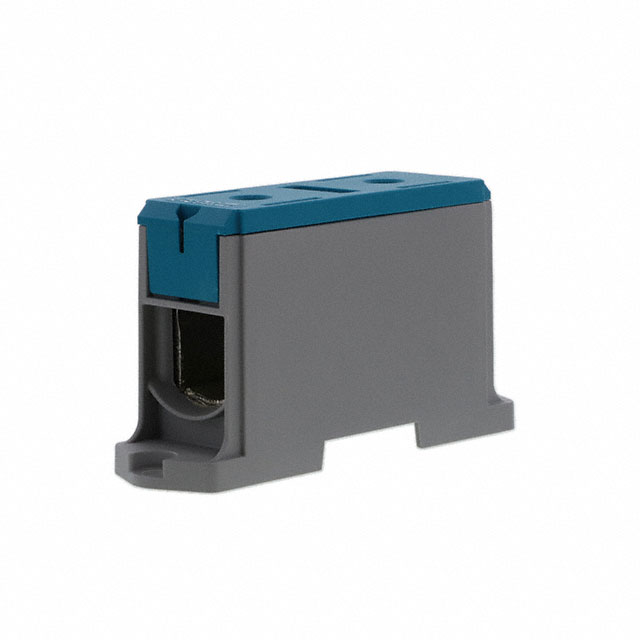

DIN RAIL TERMINAL BLOCKS UBAL 240 BU TERM BLOCK;1POS;380A

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS UBAL 240 BU TERM BLOCK;1POS;380A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1086506	UBAL Series

Color	Blue	Gray, Green, Yellow, Brown, Black, Blue
Current - IEC	380 A	145 - 380 A
For Use With/Related Products	-	CLIPLINE UBAL Series
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Levels	1	1
Number of Positions	2	2
Stripping Length	43 mm	23 - 43 mm
Terminal - Width [y]	37.5 mm	19.2 - 37.5 mm
Termination Style	Screw	Screw
Type	Feed Through	Feed Through, Cover
Voltage - IEC	1 kV	1 kV
Wire Gauge or Range - AWG [Max]	300 AWG	4 - 300 AWG
Wire Gauge or Range - AWG [Min]	3 aught AWG	1 - 4 aught AWG
Wire Gauge or Range - mm² [Max]	240 mm²	50 - 240 mm²
Wire Gauge or Range - mm² [Min]	35 mm²	6 - 35 mm²

DIN Rail Terminal Blocks UBAL 95 FE Term Block;1POS;220A

Part	Terminal - Width [y]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Termination Style	Number of Positions	Current - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - IEC	Stripping Length	Color	Number of Levels	Material - Insulation	Material Flammability Rating	For Use With/Related Products
Phoenix Contact 1086505	37.5 mm	35 mm²	240 mm²	Feed Through	Screw	2	380 A	300 AWG	3 aught AWG	1 kV	43 mm	Gray	1	Nylon, Polyamide (PA)	UL94 V-0
Phoenix Contact 1086507	37.5 mm	35 mm²	240 mm²	Feed Through	Screw	2	380 A	300 AWG	3 aught AWG	1 kV	43 mm	Green	1	Nylon, Polyamide (PA)	UL94 V-0
Phoenix Contact 1086480	25.1 mm			Feed Through	Screw	2	220 A	4 AWG	4 aught AWG	1 kV	27 mm	Yellow	1	Nylon, Polyamide (PA)	UL94 V-0
Phoenix Contact 1090037				Cover								Yellow				CLIPLINE UBAL Series
Phoenix Contact 1086479	25.1 mm			Feed Through	Screw	2	220 A	4 AWG	4 aught AWG	1 kV	27 mm	Brown	1	Nylon, Polyamide (PA)	UL94 V-0
Phoenix Contact 1086470	19.2 mm	6 mm²	50 mm²	Feed Through	Screw	2	145 A	6 AWG	1 aught AWG	1 kV	23 mm	Brown	1	Nylon, Polyamide (PA)	UL94 V-0
Phoenix Contact 1086468	19.2 mm	6 mm²	50 mm²	Feed Through	Screw	2	145 A	6 AWG	1 aught AWG	1 kV	23 mm	Green	1	Nylon, Polyamide (PA)	UL94 V-0
Phoenix Contact 1086473				Cover								Yellow				CLIPLINE UBAL Series
Phoenix Contact 1086508	37.5 mm	35 mm²	240 mm²	Feed Through	Screw	2	380 A	300 AWG	3 aught AWG	1 kV	43 mm	Black	1	Nylon, Polyamide (PA)	UL94 V-0
Phoenix Contact 1086510	37.5 mm	35 mm²	240 mm²	Feed Through	Screw	2	380 A	300 AWG	3 aught AWG	1 kV	43 mm	Yellow	1	Nylon, Polyamide (PA)	UL94 V-0
