LPA-C011301S-30
ActiveLumex Opto/Components Inc.

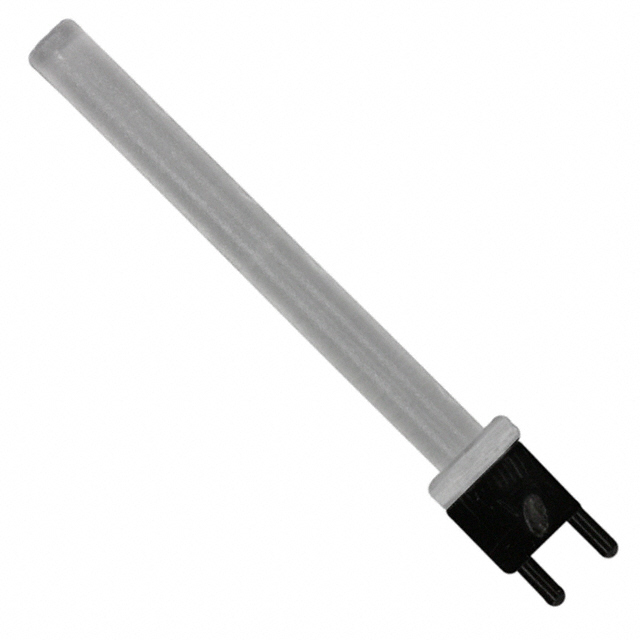

LIGHT PIPE 30MM SINGLE VERT SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPA-C011301S-30
ActiveLumex Opto/Components Inc.
LIGHT PIPE 30MM SINGLE VERT SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LPA-C011301S-30 | LPA-C011301 Series |
|---|---|---|
| Color | Clear | Clear |
| Configuration | Single | Single |
| Lens Size | - | 3 mm |
| Mounting Type | Surface Mount | Press Fit, Board Mount, Surface Mount, Surface Mount Vertical |
| Type | - | Rigid |
LPA-C011301 Series
3MM SINGLE UNIT, SMT VERTICLE LI
| Part | Mounting Type | Lens Size | Color | Type | Configuration |
|---|---|---|---|---|---|
Lumex Opto/Components Inc. LPA-C011301S-6 | Board Mount, Press Fit | 3 mm | Clear | Rigid | Single |
Lumex Opto/Components Inc. LPA-C011301S-15 | Board Mount, Press Fit | 3 mm | Clear | Rigid | Single |
Lumex Opto/Components Inc. LPA-C011301S-4 | Board Mount, Press Fit | 3 mm | Clear | Rigid | Single |
Lumex Opto/Components Inc. LPA-C011301S-40 | Board Mount, Press Fit | 3 mm | Clear | Rigid | Single |
Lumex Opto/Components Inc. LPA-C011301S-23 | Board Mount, Press Fit | 3 mm | Clear | Rigid | Single |
Lumex Opto/Components Inc. LPA-C011301S-20 | Board Mount, Press Fit | 3 mm | Clear | Rigid | Single |
Lumex Opto/Components Inc. LPA-C011301S-30 | Surface Mount | Clear | Single | ||
Lumex Opto/Components Inc. LPA-C011301S-5.4 | Surface Mount Vertical | Clear | Single | ||
Lumex Opto/Components Inc. LPA-C011301S-50 | Board Mount, Press Fit | 3 mm | Clear | Rigid | Single |
Lumex Opto/Components Inc. LPA-C011301S-37.9 | Board Mount, Press Fit | 3 mm | Clear | Rigid | Single |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 1.61 | |
| 10 | $ 1.02 | |||
| 100 | $ 0.72 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.56 | |||
| 2000 | $ 0.53 | |||
| 5000 | $ 0.50 | |||
| 10000 | $ 0.48 | |||
Description
General part information
LPA-C011301 Series
Light Pipe Single Clear Surface Mount
