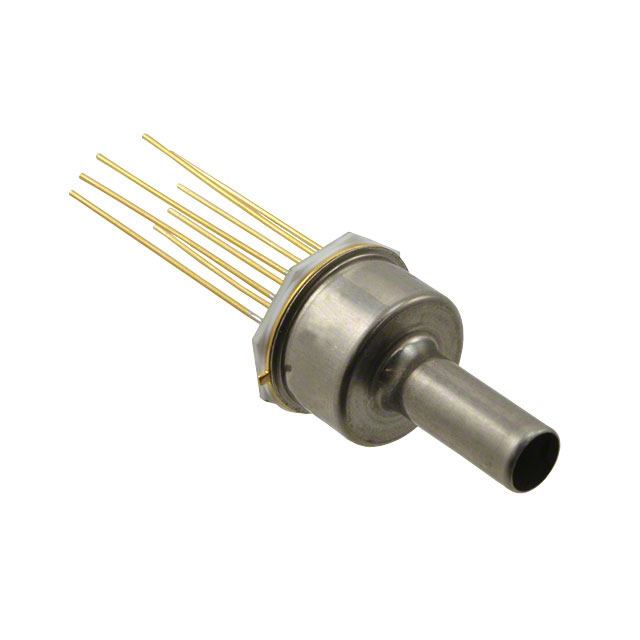

13A-005G

Obsolete

TE Connectivity Measurement Specialties

SENSOR 5PSIG 0.19" 0.1V TO8

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 5PSIG 0.19" 0.1V TO8

Technical Specifications

Parameters and characteristics for this part

Part	Pressure Type	Output Type	Output [Min]	Output [Max]	Termination Style	Port Size	Operating Pressure	Operating Pressure	Applications	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Features	Supplier Device Package	Accuracy	Maximum Pressure	Maximum Pressure	Mounting Type	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity Measurement Specialties 13A-005G	Vented Gauge	Wheatstone Bridge	0 mV	100 mV	PC Pin	4.78 mm 4.826 mm	34.47 kPa	5 PSI	Board Mount	TO-8 Style	12	125 °C	-40 °C	Temperature Compensated	TO-8	0.1 %	20 PSI	137.9 kPa	Through Hole	Barbless
TE Connectivity Measurement Specialties 13A-030G	Vented Gauge	Wheatstone Bridge	0 mV	100 mV	PC Pin	4.78 mm 4.826 mm	206.84 kPa	30 PSI	Board Mount	TO-8 Style	12	125 °C	-40 °C	Temperature Compensated	TO-8	0.1 %			Through Hole	Barbless	90 PSI	620.53 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.19" (4.78mm) Tube 0 mV ~ 100 mV TO-8 Style, 12 Leads
