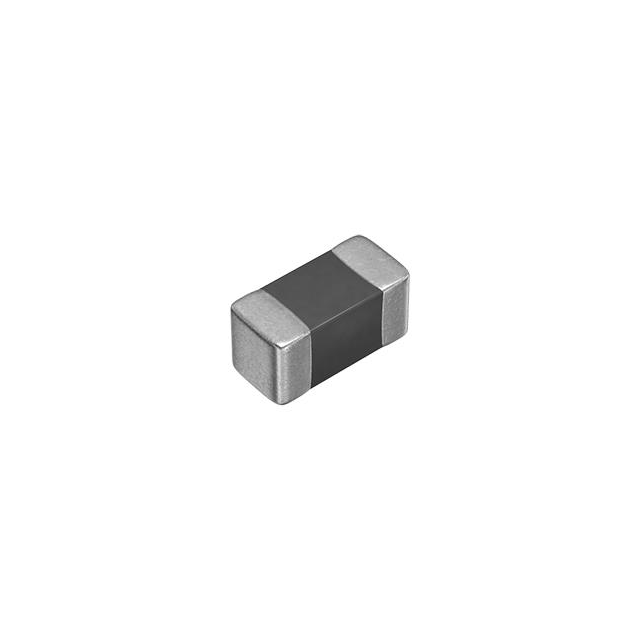

AVRH10C270KT350NA8

Active

TDK Corporation

1.0X0.5MM EIA 0402 HIGH RELIABIL

Search across all available documentation for this part.

Active

TDK Corporation

1.0X0.5MM EIA 0402 HIGH RELIABIL

Technical Specifications

Parameters and characteristics commom to parts in this series

1.0X0.5MM EIA 0402 HIGH RELIABIL

Part	Package / Case	Varistor Voltage (Max) [Max]	Capacitance @ Frequency	Varistor Voltage (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Circuits	Current - Surge	Mounting Type	Energy	Maximum DC Volts [Max]	Varistor Voltage (Min) [Min]
TDK Corporation AVRH10C270KT350NA8	0402 (1005 Metric)	30 V	35 pF	27 V	-55 °C	150 °C	1	8 A	Surface Mount, MLCV	0.02 J	19 V
TDK Corporation AVRH10C390KT500NA8	0402 (1005 Metric)	43 V	50 pF	39 V	-40 °C	150 °C	1	15 A	Surface Mount, MLCV	0.02 J	28 V	35 V
TDK Corporation AVRH10C270KT150NA8	0402 (1005 Metric)	30 V	15 pF	27 V	-40 °C	150 °C	1	2 A	Surface Mount, MLCV	0.02 J	19 V
TDK Corporation AVRH10C101KT4R7FA8	0402 (1005 Metric)	110 V	4.7 pF	100 V	-40 °C	150 °C	1	1 A	Surface Mount, MLCV	0.03 J	70 V	90 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

27 V 8 A Varistor 1 Circuit Surface Mount, MLCV 0402 (1005 Metric)
