YB16RKW01-6F-JB

Active

NKK SWITCHES

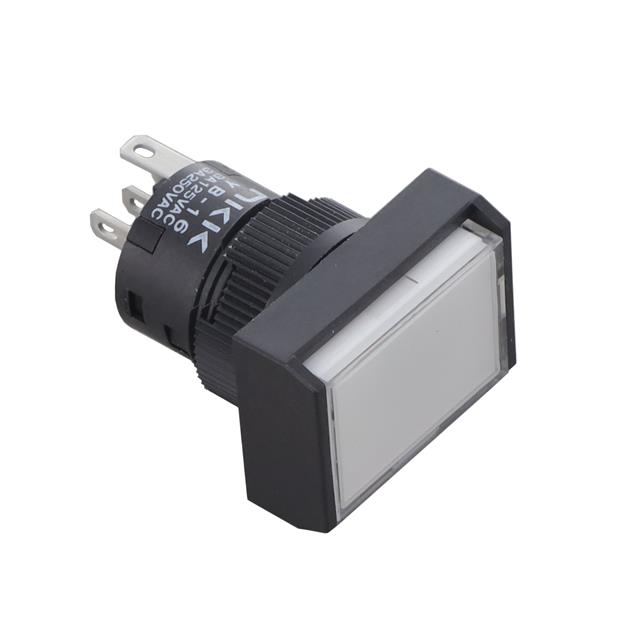

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB16RKW01-6F-JB

Active

NKK SWITCHES

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.24
		10	$ 22.92
		100	$ 19.96
Newark	Each	1	$ 44.22
		5	$ 39.43
		10	$ 38.09
		25	$ 35.99
		50	$ 33.50
		100	$ 29.67
		250	$ 26.61

Description

General part information

YB16RK Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YB16RKW01-6F-JB	YB16RK Series

Actuator Marking	No Marking	No Marking
Actuator Type	Rectangular, Button	Rectangular, Button, Plunger for Cap
Circuit	SPDT	SPDT
Color - Actuator/Cap	Clear	Clear, Blue, White, Clear (Red Filter/Diffuser)
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	100000 Cycles	100000 Cycles
Features	Tactile Feedback	Tactile Feedback
Illumination Type, Color	LED, Green	White, LED, Green, Red, Amber, Green/Red
Illumination Voltage (Nominal)	3.3 VDC	1.9 - 24 VDC
Mechanical Life	200000 Cycles	200000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	50 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-On	On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

YB16RK Series

PUSHBUTTON SWITCH, YB SERIES, 16 MM, SPDT, ON-ON, RECTANGULAR, TRANSPARENT

Part	Circuit	Actuator Type	Electrical Life	Features	Type	Switch Function	Color - Actuator/Cap	Voltage Rating - DC	Illumination Type, Color	Mounting Type	Current Rating (Amps)	Actuator Marking	Termination Style	Termination Style	Termination Style	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]
NKK SWITCHES YB16RKW01-6B-JB	SPDT	Rectangular, Button	100000 Cycles	Tactile Feedback	Illuminated, Standard	On-On	Clear	30 V	LED, White	Panel Mount, Front	3 A	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	3.3 VDC	16 mm	125 V	200000 Cycles	50 °C	-25 °C
NKK SWITCHES YB16RKW01-GB	SPDT	Rectangular, Button	100000 Cycles	Tactile Feedback	Standard	On-On	Blue	30 V		Panel Mount, Front	3 A	No Marking	0.11 in	Quick Connect, Solder	2.8 mm		16 mm	125 V	200000 Cycles	70 °C	-25 °C
NKK SWITCHES YB16RKW01-1F12-JF	SPDT	Rectangular, Button	100000 Cycles	Tactile Feedback	Illuminated, Standard	On-On	Clear	30 V	Green, LED	Panel Mount, Front	3 A	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	12 VDC	16 mm	125 V	200000 Cycles	50 °C	-25 °C
NKK SWITCHES YB16RKW01-JB	SPDT	Rectangular, Button	100000 Cycles	Tactile Feedback	Standard	On-On	Clear	30 V		Panel Mount, Front	3 A	No Marking	0.11 in	Quick Connect, Solder	2.8 mm		16 mm	125 V	200000 Cycles	70 °C	-25 °C
NKK SWITCHES YB16RKG01	SPDT	Plunger for Cap	100000 Cycles	Tactile Feedback	Standard	On-On		28 V		Panel Mount, Front	0.4 VA	No Marking	0.11 in	Quick Connect, Solder	2.8 mm		16 mm	28 V	200000 Cycles	70 °C	-25 °C
NKK SWITCHES YB16RKW01-BB	SPDT	Rectangular, Button	100000 Cycles	Tactile Feedback	Standard	On-On	White	30 V		Panel Mount, Front	3 A	No Marking	0.11 in	Quick Connect, Solder	2.8 mm		16 mm	125 V	200000 Cycles	70 °C	-25 °C
NKK SWITCHES YB16RKW01-5F24-JF	SPDT	Rectangular, Button	100000 Cycles	Tactile Feedback	Illuminated, Standard	On-On	Clear	30 V	Green, LED	Panel Mount, Front	3 A	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	24 V	16 mm	125 V	200000 Cycles	50 °C	-25 °C
NKK SWITCHES YB16RKW01-5C05-JB	SPDT	Rectangular, Button	100000 Cycles	Tactile Feedback	Illuminated, Standard	On-On	Clear	30 V	LED, Red	Panel Mount, Front	3 A	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	5 VDC	16 mm	125 V	200000 Cycles	50 °C	-25 °C
NKK SWITCHES YB16RKW01-5C24-JC	SPDT	Rectangular, Button	100000 Cycles	Tactile Feedback	Illuminated, Standard	On-On	Clear (Red Filter/Diffuser)	30 V	LED, Red	Panel Mount, Front	3 A	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	24 V	16 mm	125 V	200000 Cycles	50 °C	-25 °C
NKK SWITCHES YB16RKW01-5D12-JB	SPDT	Rectangular, Button	100000 Cycles	Tactile Feedback	Illuminated, Standard	On-On	Clear	30 V	Amber, LED	Panel Mount, Front	3 A	No Marking	0.11 in	Quick Connect, Solder	2.8 mm	12 VDC	16 mm	125 V	200000 Cycles	50 °C	-25 °C
