W8282-2SG-P-513

Active

Conxall/Switchcraft

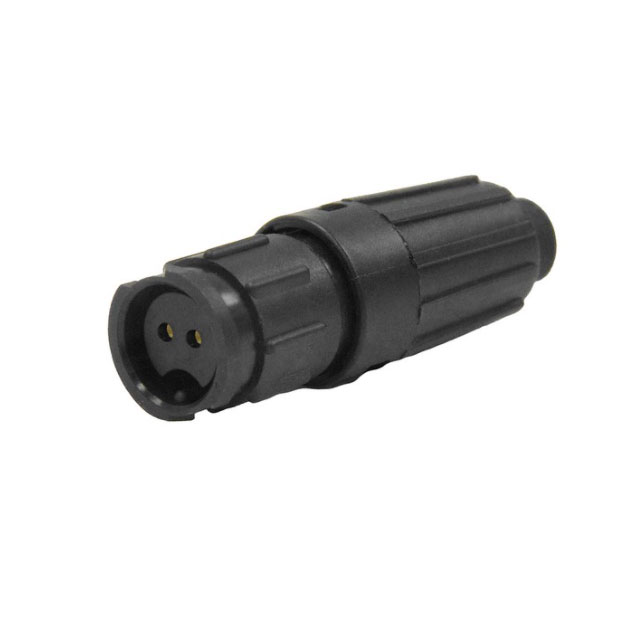

MINI-CON-X INSTA-CLICK CONNECTOR

Search across all available documentation for this part.

Active

Conxall/Switchcraft

MINI-CON-X INSTA-CLICK CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	W8282-2SG-P-513

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [custom]	0.13 in, 0.15 in
Cable Opening [custom]	3.81 mm, 3.3 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Voltage Rating	300 VAC

MINI-CON-X INSTA-CLICK CONNECTOR

Part	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Mounting Type	Ingress Protection	Voltage Rating	Shell Material	Applications	Backshell Material, Plating	Current Rating (Amps)	Contact Material	Fastening Type	Insert Material	Orientation	Contact Finish - Mating	Shielding	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Color	Features
Conxall/Switchcraft W8282-2SG-P-513	0.13 in, 0.15 in	3.3 mm, 3.81 mm	Female Sockets, Plug	Free Hanging (In-Line)	IP66, IP67, IP68	300 VAC	Polybutylene Terephthalate (PBT)	Automotive, Communication Systems, Instrumentation	Thermoplastic	Varies by Wire Gauge	Copper Alloy	Bayonet Lock	Thermoplastic	Keyed	Gold	Unshielded	2	85 °C	-40 °C	Black	Backshell, Coupling Nut, UV Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Position Circular Connector Plug, Female Sockets Solder Cup
