FMAM63020
ActiveFairview Microwave
LOWNOISEAMP 100MHZ-18GHZ P1DB SM
FMAM63020
ActiveFairview Microwave
LOWNOISEAMP 100MHZ-18GHZ P1DB SM
Description
General part information
FMAM63020

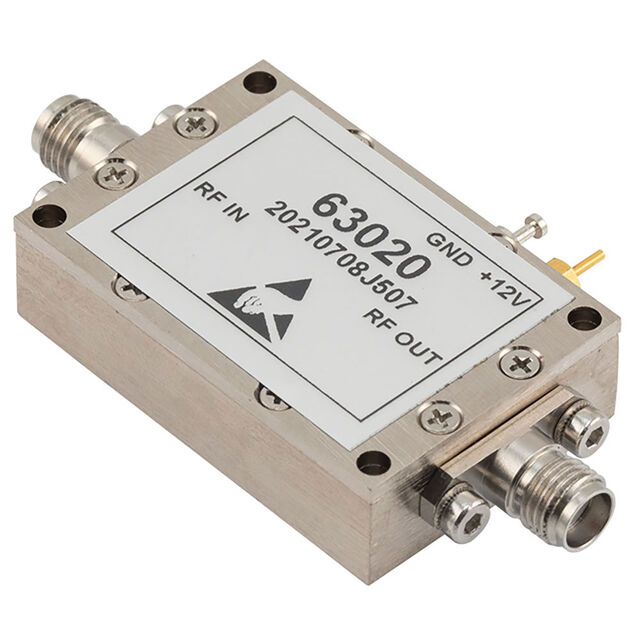

RF Amplifier IC Radar 100MHz ~ 18GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM63020 |
|---|---|
| Current - Supply | 280 mA |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 100 MHz |
| Gain | 36 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 3.5 dB |
| P1dB | 21.5 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
