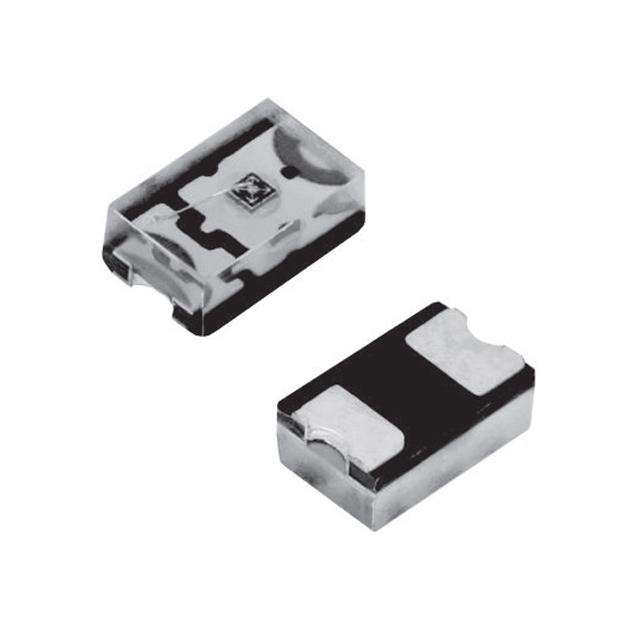

VSMB1940ITX01

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 100MA 0805

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 100MA 0805

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VSMB1940ITX01	VSMB1940 Series

Current - DC Forward (If) (Max) [Max]	100 mA	100 mA
Grade	Automotive	Automotive
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	0805	0805
Qualification	AEC-Q101	AEC-Q101
Radiant Intensity (Ie) Min @ If [Min]	3 mW/sr	3 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	1.35 V	1.35 V
Wavelength	940 nm	940 nm

EMITTER IR 940NM 100MA 0805

Part	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Qualification	Grade	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]	Package / Case	Viewing Angle	Mounting Type	Type
Vishay Semiconductor Opto Division VSMB1940X01	3 mW/sr	940 nm	AEC-Q101	Automotive	Top View	85 °C	-40 °C	1.35 V	100 mA	0805	120 °	Surface Mount	Infrared (IR)
Vishay Semiconductor Opto Division VSMB1940ITX01	3 mW/sr	940 nm	AEC-Q101	Automotive	Top View	105 °C	-40 °C	1.35 V	100 mA	0805	120 °	Surface Mount	Infrared (IR)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.35V 100mA 3mW/sr @ 100mA 120° 0805 (2012 Metric)
