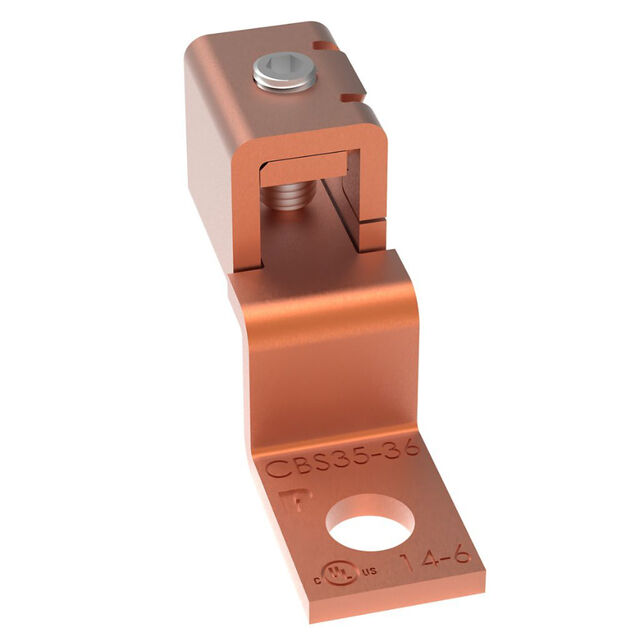

CBS35-36-C
ActivePanduit Corp
TERMINALS COPPER MECHANICAL LUG, 1 HOLE, 1 BARREL,
CBS35-36-C
ActivePanduit Corp
TERMINALS COPPER MECHANICAL LUG, 1 HOLE, 1 BARREL,
Description
General part information
CBS35-36-C
Terminal Connector Rectangular Lug, Grounding 6-14 AWG 3/16 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | CBS35-36-C |
|---|---|
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall | 1.29 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 16 Stud, 3 Stud |
| Stud/Tab Size | 0.1875 in |
| Stud/Tab Size (Type) | Stud |
| Tab Thickness | 0.06 in |
| Terminal Style | Single Stud Hole |
| Terminal Type | Lug, Grounding |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 0.39 in |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 6 AWG |
