IP-UNCK15A

Active

Sure-Seal

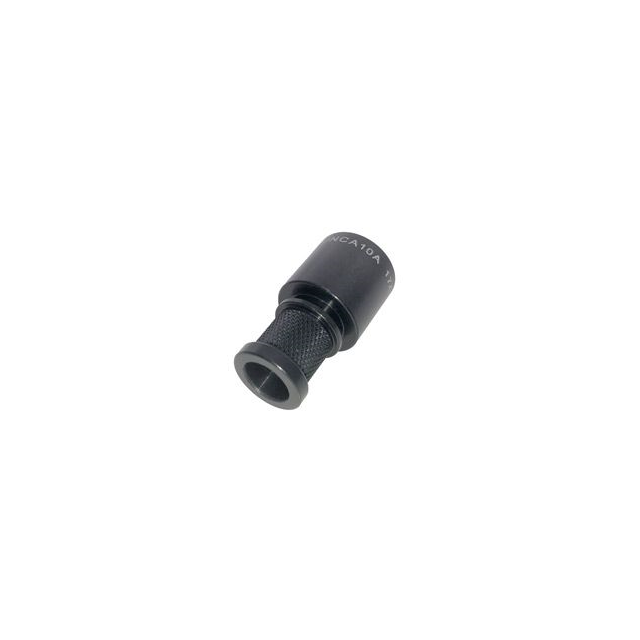

CONN BACKSH BANDING SZ15 D BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IP-UNCK15A

Active

Sure-Seal

CONN BACKSH BANDING SZ15 D BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 32.18
		10	$ 21.46
		25	$ 17.40
		50	$ 15.33
		100	$ 13.41

Description

General part information

IP-U Series

Black Connector Backshell, Banding 15, D

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IP-UNCK15A	IP-U Series

Cable Exit	180 °	180 °
Cable Opening	-	9.5 - 28.6 mm
Cable Opening	-	0.374 - 1.126 in
Cable Opening	-	0.709 in
Cable Opening	-	18 mm
Cable Opening [custom]	15.88 mm	7.92 - 41.28 mm
Cable Opening [custom]	0.625 in	0.312 - 1.625 in
Color	Black	Olive Drab, Silver, Black, Gray
Diameter - Outside	-	0.74 - 1.772 in
Diameter - Outside	-	18.8 - 45 mm
For Use With/Related Products	MIL-DTL-38999 Series III	MIL-DTL-38999 Series III, MIL-DTL-26482 Series I, MIL-DTL-38999 Series I, II, MIL-DTL-5015 Series, MIL-DTL-26482 Series II
Includes	1 O-Ring, 1 Backshell	1 O-Ring, 1 Backshell
Material	Aluminum	Aluminum
Plating	Anodized	Cadmium over Electroless Nickel, Electroless Nickel, Zinc Cobalt over Electroless Nickel, Zinc Nickel over Electroless Nickel, Zinc Nickel, Anodized
Shell Size - Insert	15	9 - 40
Shell Size - Insert	D	17, E, 16, 18, 8S, 9, 8, 14, 14S, 12, C, 12S, 10, D, B, J, 16S, 10SL
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Unshielded	Unshielded
Thread Size	-	PG16, PG29, PG21, PG7, PG9, PG11, PG13.5
Type	Banding, Backshell	Backshell, Adapter, Banding, Backshell
