Description
General part information
09455451122

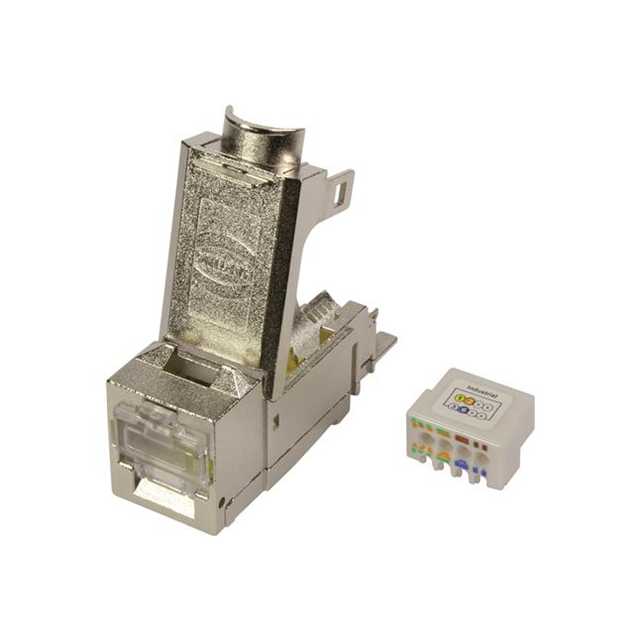

Jack Modular Connector 8p4c Straight Shielded Cat5
Technical Specifications
Parameters and characteristics for this part
| Specification | 09455451122 |
|---|---|
| Connector Type | Jack |
| Ingress Protection | IP20 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Straight |
| Ratings | Cat5 |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | Color Coded Block, IDC |
