3241085

Active

Phoenix Contact

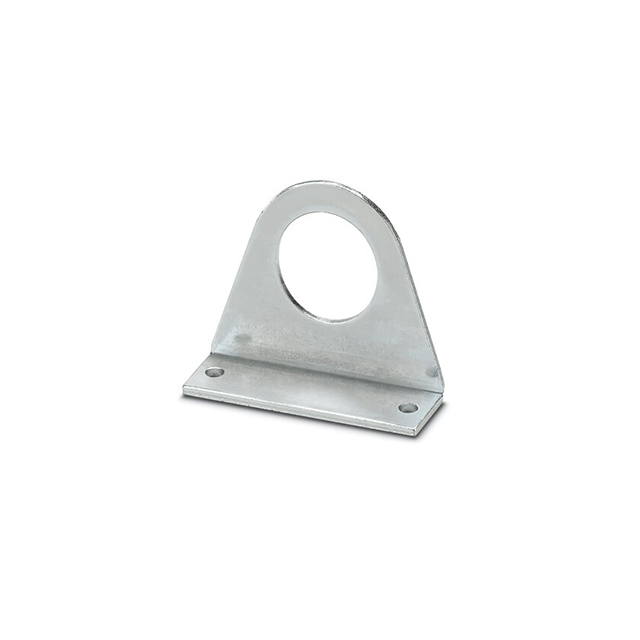

CBL SUPPORT HOSE SILVER BRACKET

Search across all available documentation for this part.

Active

Phoenix Contact

CBL SUPPORT HOSE SILVER BRACKET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3241085	WP-BASE Series

Color	Silver	Silver, Black
Features	M25 Screw Connection	PG16 Screw Connection, PG21 Screw Connection, Rubber Protective Coating, M25 Screw Connection, M32 Screw Connection
Material	Steel, Galvanized	Steel, Galvanized, Nylon, Polyamide (PA), Halogen Free, Galvanized, Steel
Material Flammability Rating	-	UL94 V-0
Mounting Type	Fastener, Bracket Mount	Fastener, Bracket Mount, DIN Rail
Opening Size	-	29 mm
Opening Size	-	1.142 in
Opening Size	-	13 - 33 mm
Opening Size	-	0.512 - 1.299 in
Opening Size	-	45 mm
Opening Size	-	1.772 in
Opening Size [custom]	26 mm	14 - 37 mm
Opening Size [custom]	1.024 in	0.551 - 1.457 in
Type	Support, Hose	Support, Hose, Clamp, Hose, Clamp, P-Type
Type Attributes	-	2 Piece, Strain Relief, Cushioned

CBL SUPPORT HOSE SILVER BRACKET

Part	Color	Type	Features	Mounting Type	Opening Size [custom]	Opening Size [custom]	Material	Opening Size [x]	Opening Size [x]	Type Attributes	Material Flammability Rating	Opening Size	Opening Size	Opening Size [z]	Opening Size [z]
Phoenix Contact 3241079	Silver	Support, Hose	PG16 Screw Connection	Bracket Mount, Fastener	23 mm	0.906 in	Steel, Galvanized
Phoenix Contact 3241080	Silver	Support, Hose	PG21 Screw Connection	Bracket Mount, Fastener			Steel, Galvanized	29 mm	1.142 in
Phoenix Contact 3240958	Black	Clamp, Hose		DIN Rail			Halogen Free, Nylon, Polyamide (PA)			2 Piece, Strain Relief	UL94 V-0
Phoenix Contact 3240967	Black, Silver	Clamp, P-Type	Rubber Protective Coating	Fastener	14 mm	0.551 in	Galvanized, Halogen Free, Steel			Cushioned
Phoenix Contact 3240971	Black, Silver	Clamp, P-Type	Rubber Protective Coating	Fastener			Galvanized, Halogen Free, Steel	29 mm	1.142 in	Cushioned
Phoenix Contact 3240966	Black, Silver	Clamp, P-Type	Rubber Protective Coating	Fastener			Galvanized, Halogen Free, Steel			Cushioned		13 mm	0.512 in
Phoenix Contact 3240973	Black, Silver	Clamp, P-Type	Rubber Protective Coating	Fastener			Galvanized, Halogen Free, Steel			Cushioned				45 mm	1.772 in
Phoenix Contact 3241085	Silver	Support, Hose	M25 Screw Connection	Bracket Mount, Fastener	26 mm	1.024 in	Steel, Galvanized
Phoenix Contact 3240972	Black, Silver	Clamp, P-Type	Rubber Protective Coating	Fastener	37 mm	1.457 in	Galvanized, Halogen Free, Steel			Cushioned
Phoenix Contact 3241086	Silver	Support, Hose	M32 Screw Connection	Bracket Mount, Fastener			Steel, Galvanized					33 mm	1.299 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 6.80

General part information

Cable Support, Hose Silver Bracket Mount, Fastener 1.024" (26.00mm)
