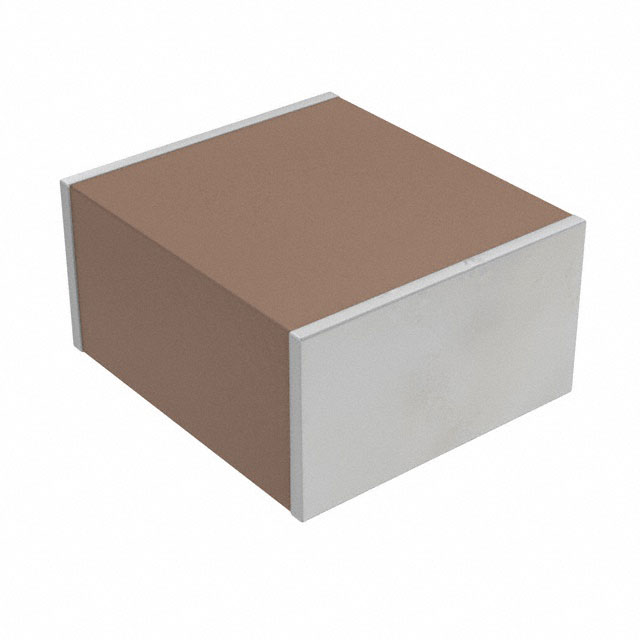

CGA9P1X7S3D103K250KE
NRNDTDK Corporation
CAP CER 10000PF 2KV X7S 2220
CGA9P1X7S3D103K250KE
NRNDTDK Corporation
CAP CER 10000PF 2KV X7S 2220
Description
General part information
CGA9P1X7S3D103K250KE
10000 pF ±10% 2000V (2kV) Ceramic Capacitor X7S 2220 (5750 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CGA9P1X7S3D103K250KE |
|---|---|
| Applications | Automotive, Boardflex Sensitive |
| Capacitance | 10000 pF |
| Features | Soft Termination |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2220 (5750 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.224 in |
| Size / Dimension Width | 0.197 in |
| Temperature Coefficient | X7S |
| Thickness (Max) | 0.11 in |
| Tolerance | 10 % |
| Voltage - Rated | 2000 VAC |
