N7G24-A0B2RB-00-0HT

Active

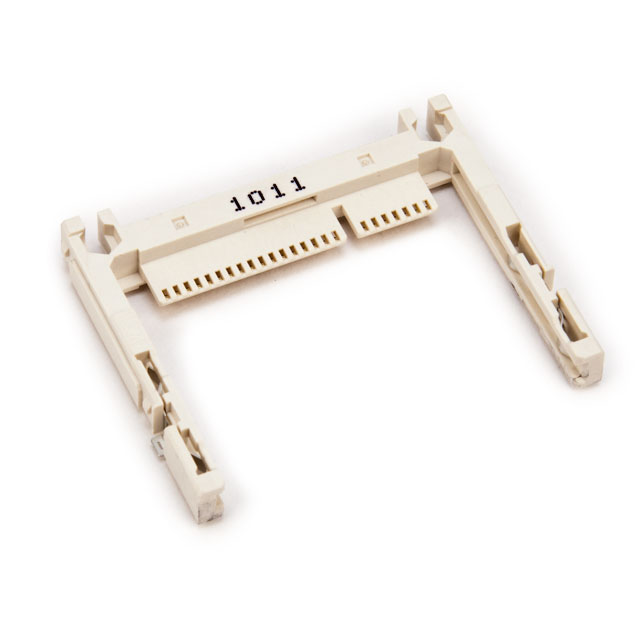

CONN CFAST CARD R/A SMD

Search across all available documentation for this part.

Active

CONN CFAST CARD R/A SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N7G24-A0B2RB-00-0HT	N7G24 Series

Card Type	CFast™ - Type I, II	CFast™ - Type I, II
Connector Type	-	Connector and Ejector
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 µm
Contact Finish Thickness	30 Áin	15 - 30 µin
Ejector Side	-	Right, Left
Features	Card Guides	Card Guide, Board Guide, Card Guides
Height Above Board	0.224 in	0.224 in
Height Above Board	5.7 mm	5.7 mm
Height Above Board	-	0.303 in
Height Above Board	-	7.7 mm
Insertion, Removal Method	Pull Out, Push In	Push Out, Push In, Pull Out
Mounting Feature	Normal, Standard - Top	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	24	24

CONN CFAST CARD R/A SMD

Part	Insertion, Removal Method	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Ejector Side	Contact Finish	Features	Connector Type	Mounting Type	Mounting Feature	Card Type	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board
3M N7G24-A0B2RA-10-3HT	Push In, Push Out	24	15 µin	0.38 µm	Right	Gold	Board Guide, Card Guide	Connector and Ejector	Surface Mount, Right Angle	Normal, Standard - Top	CFast™ - Type I, II	0.303 in	7.7 mm
3M N7G24-A0B2RB-10-5HT	Push In, Push Out	24	30 Áin	0.76 Ám	Left	Gold	Board Guide, Card Guide	Connector and Ejector	Surface Mount, Right Angle	Normal, Standard - Top	CFast™ - Type I, II	0.303 in	7.7 mm
3M N7G24-A0B2RB-00-3HT	Push In, Push Out	24	30 Áin	0.76 Ám	Right	Gold	Board Guide, Card Guide	Connector and Ejector	Surface Mount, Right Angle	Normal, Standard - Top	CFast™ - Type I, II			0.224 in	5.7 mm
3M N7G24-A0B2RB-00-0HT	Pull Out, Push In	24	30 Áin	0.76 Ám		Gold	Card Guides		Surface Mount, Right Angle	Normal, Standard - Top	CFast™ - Type I, II			0.224 in	5.7 mm
3M N7G24-A0B2RA-10-5HT	Push In, Push Out	24	15 µin	0.38 µm	Left	Gold	Board Guide, Card Guide	Connector and Ejector	Surface Mount, Right Angle	Normal, Standard - Top	CFast™ - Type I, II	0.303 in	7.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Card Connector CFast™ - Type I, II Surface Mount, Right Angle Gold
