ILLUMINATED PUSHBUTTON WITH DIODE MOM SA 1NC+1NO+2D UT D29 GOLD/SILVER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

EAO

ILLUMINATED PUSHBUTTON WITH DIODE MOM SA 1NC+1NO+2D UT D29 GOLD/SILVER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14-744.0292	14-744 Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button (Not Included)	Round, Button (Not Included)
Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	5 A	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	2000000 Cycles	2000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	Off-Mom, On-Mom	Off-Mom, On-Mom
Termination Style	Solder Lug	Solder Lug
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

ILLUMINATED PUSHBUTTON WITH DIODE MOM SA 1NC+1NO+2D UT D29 GOLD/SILVER ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Ingress Protection	Switch Function	Actuator Type	Mounting Type	Panel Cutout Dimensions [diameter]	Circuit	Type	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Mechanical Life
EAO 14-744.0292	55 °C	-25 °C	No Marking	IP67 - Dust Tight, Waterproof	Off-Mom, On-Mom	Round, Button (Not Included)	Panel Mount, Front	22.3 mm	DPST-NO/NC	Standard	5 A	Solder Lug	250 V	2000000 Cycles
EAO 14-744.0292

General part information

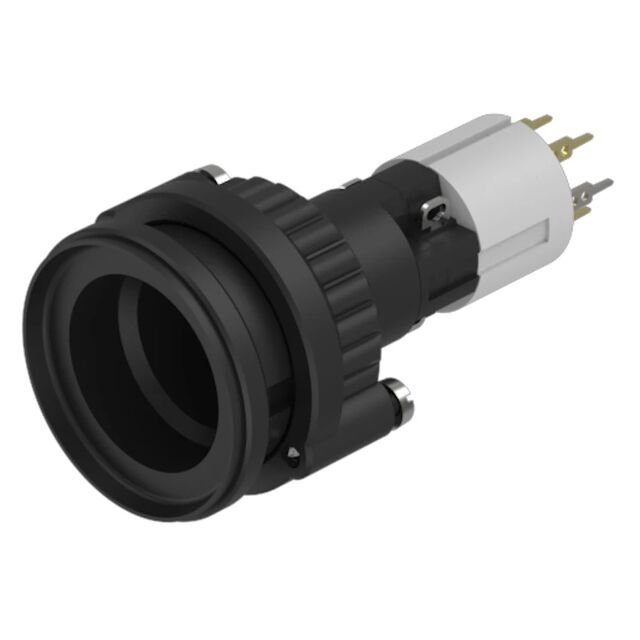

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
