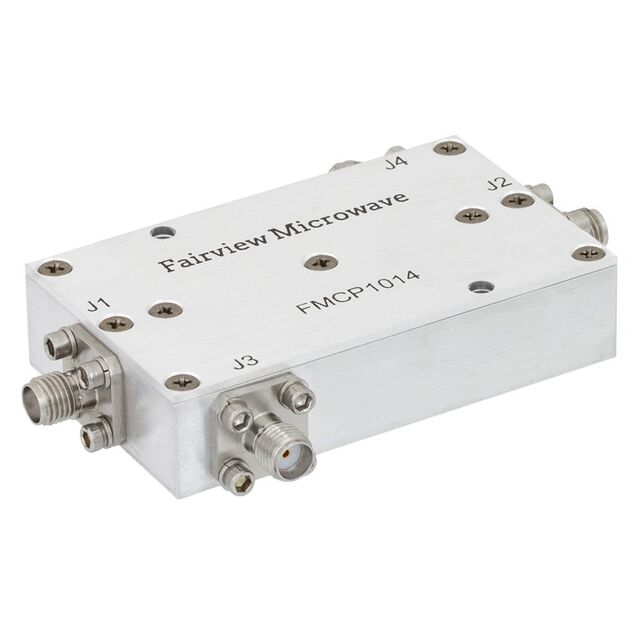

FMCP1014
ActiveFairview Microwave
COUPLER 0.8-2.5 GHZ 200 W SMA
FMCP1014
ActiveFairview Microwave
COUPLER 0.8-2.5 GHZ 200 W SMA
Description
General part information
FMCP1014
RF Directional Coupler General Purpose 800MHz ~ 2.5GHz 40 ± 1dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCP1014 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 40 dB |
| Coupling Factor Tolerance | 1 dB |
| Frequency (Max) | 2.5 GHz |
| Frequency (Min) | 800 MHz |
| Insertion Loss | 0.25 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
