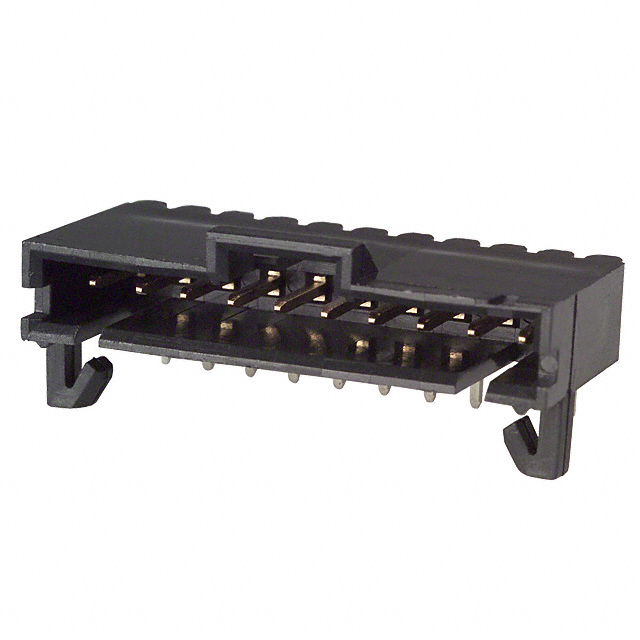

103904-9
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103904-9
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103904-9 | 103904 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Lock, Keying Slot | Board Lock, Keying Slot |
| Insulation Color | Black | Black |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 10 | 4 - 22 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.11 | |
| 19 | $ 1.88 | |||
| 114 | $ 1.70 | |||
| 513 | $ 1.54 | |||
| 1007 | $ 1.37 | |||
| 5016 | $ 1.21 | |||
103904 Series
CONN HEADER R/A 4POS 2.54MM
| Part | Applications | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Mating [x] | Contact Length - Mating | Mounting Type | Material Flammability Rating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Connector Type | Contact Finish - Mating | Number of Positions | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Shrouding | Contact Material | Fastening Type | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination | Current Rating (Amps) | Insulation Material | Features | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103904-3 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 4 | 0.13 in | 3.3 mm | Tin-Lead | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 2-103904-1 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 22 positions | 0.13 in | 3.3 mm | Tin | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 6-103904-3 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 14 | 0.13 in | 3.3 mm | Tin | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 5-103904-5 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 6 | 0.13 in | 3.3 mm | Tin | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 103904-9 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 10 | 0.13 in | 3.3 mm | Tin-Lead | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 6-103904-9 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 20 | 0.13 in | 3.3 mm | Tin | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 103904-2 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 0.13 in | 3.3 mm | Tin-Lead | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin | |
TE Connectivity AMP Connectors 103904-6 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 7 | 0.13 in | 3.3 mm | Tin-Lead | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 6-103904-1 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 12 | 0.13 in | 3.3 mm | Tin | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 5-103904-6 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 7 | 0.13 in | 3.3 mm | Tin | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 5-103904-7 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 8 | 0.13 in | 3.3 mm | Tin | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 103904-5 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 6 | 0.13 in | 3.3 mm | Tin-Lead | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 103904-8 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 9 | 0.13 in | 3.3 mm | Tin-Lead | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 103904-7 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 8 | 0.13 in | 3.3 mm | Tin-Lead | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
TE Connectivity AMP Connectors 5-103904-4 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 0.13 in | 3.3 mm | Tin | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin | |
TE Connectivity AMP Connectors 5-103904-8 | Automotive, General Purpose, Medical, Telecommunications | Square | 30 Áin | 0.76 Ám | 0.23 in | 5.84 mm | Through Hole, Right Angle | UL94 V-0 | Black | 2.54 µm | 100 µin | Board to Board, Cable | Header | Gold | 9 | 0.13 in | 3.3 mm | Tin | Shrouded - 4 Wall | Brass | Latch Holder | All | 0.1 in | 2.54 mm | -65 ░C | 105 ░C | 1 | Solder | 3 A | Thermoplastic | Board Lock, Keying Slot | Male Pin |
Description
General part information
103904 Series
Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
