LTC3113IDHD#PBF
ActiveAnalog Devices Inc
3A LOW NOISE BUCK-BOOST DC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
LTC3113IDHD#PBF
ActiveAnalog Devices Inc
3A LOW NOISE BUCK-BOOST DC/DC CONVERTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series

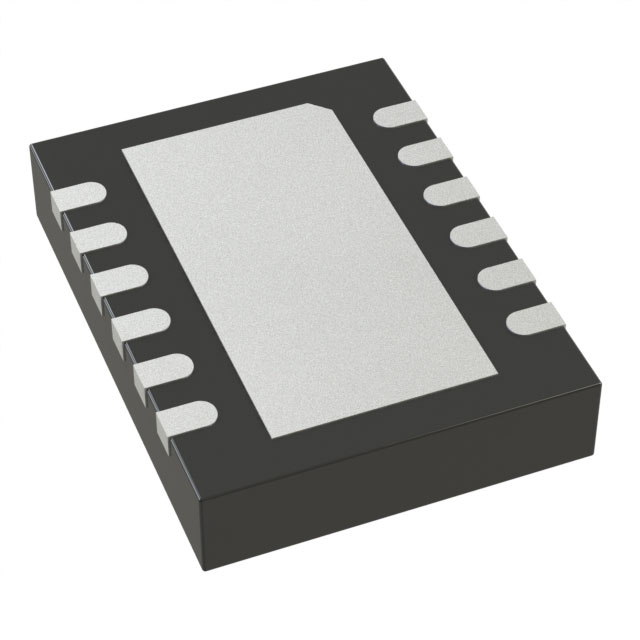

| Specification | LTC3113IDHD#PBF | LTC3113 Series |
|---|---|---|
| Current - Output | 3 A | 3 A |
| Frequency - Switching [Max] | 2 MHz | 2 MHz |
| Frequency - Switching [Min] | 300 kHz | 300 kHz |
| Function | Step-Up/Step-Down | Step-Up/Step-Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Package / Case | 16-WFDFN Exposed Pad | Exposed Pad, 20-TSSOP, 16-WFDFN Exposed Pad |
| Package / Case | - | 0.173 - 4.4 mm |
| Supplier Device Package | 16-DFN (5x4) | 20-TSSOP-EP, 16-DFN (5x4) |
| Synchronous Rectifier | True | True |
| Topology | Buck-Boost | Buck-Boost |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 1.8 V | 1.8 V |
| Voltage - Output (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Output (Min/Fixed) | 1.8 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
LTC3113 Series
3A Low Noise Buck-Boost DC/DC Converter
| Part | Output Configuration | Output Type | Voltage - Output (Min/Fixed) | Topology | Current - Output | Mounting Type | Package / Case | Package / Case | Frequency - Switching [Max] | Frequency - Switching [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Function | Synchronous Rectifier | Number of Outputs | Voltage - Output (Max) [Max] | Voltage - Input (Min) [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc LTC3113EFE#PBFThe LTC3113 is a wide VINrange, highly efficient, fixed frequency, buck-boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides low noise operation, making it well suited for RF and precision measurement applications.The LTC3113 can deliver up to 3A of continuous output current to satisfy the most demanding applications. Higher output current is possible in stepdown (buck) mode. Integrated low RDS(ON)power MOSFETs and a programmable switching frequency up to 2MHz result in a compact solution footprint. Selectable Burst Mode operation improves efficiency at light loads.Other features include <1μA shutdown current, integrated soft-start, short-circuit protection, current limit and thermal overload protection. The LTC3113 is housed in the thermally enhanced 16-lead (4mm × 5mm × 0.75mm) DFN and 20-lead TSSOP packages.ApplicationsWireless ModemsBackup Power SystemsPortable Inventory TerminalsPortable Barcode ReadersPortable Instrumentation | Positive | Adjustable | 1.8 V | Buck-Boost | 3 A | Surface Mount | 0.173 in, 4.4 mm | 20-TSSOP, Exposed Pad | 2 MHz | 300 kHz | 125 ¯C | -40 °C | 5.5 V | Step-Up/Step-Down | 1 | 5.5 V | 1.8 V | 20-TSSOP-EP | |
Analog Devices Inc LTC3113IDHD#PBFThe LTC3113 is a wide VINrange, highly efficient, fixed frequency, buck-boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides low noise operation, making it well suited for RF and precision measurement applications.The LTC3113 can deliver up to 3A of continuous output current to satisfy the most demanding applications. Higher output current is possible in stepdown (buck) mode. Integrated low RDS(ON)power MOSFETs and a programmable switching frequency up to 2MHz result in a compact solution footprint. Selectable Burst Mode operation improves efficiency at light loads.Other features include <1μA shutdown current, integrated soft-start, short-circuit protection, current limit and thermal overload protection. The LTC3113 is housed in the thermally enhanced 16-lead (4mm × 5mm × 0.75mm) DFN and 20-lead TSSOP packages.ApplicationsWireless ModemsBackup Power SystemsPortable Inventory TerminalsPortable Barcode ReadersPortable Instrumentation | Positive | Adjustable | 1.8 V | Buck-Boost | 3 A | Surface Mount | 16-WFDFN Exposed Pad | 2 MHz | 300 kHz | 125 ¯C | -40 °C | 5.5 V | Step-Up/Step-Down | 1 | 5.5 V | 1.8 V | 16-DFN (5x4) | ||
Analog Devices Inc LTC3113EFE#TRPBFThe LTC3113 is a wide VINrange, highly efficient, fixed frequency, buck-boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides low noise operation, making it well suited for RF and precision measurement applications.The LTC3113 can deliver up to 3A of continuous output current to satisfy the most demanding applications. Higher output current is possible in stepdown (buck) mode. Integrated low RDS(ON)power MOSFETs and a programmable switching frequency up to 2MHz result in a compact solution footprint. Selectable Burst Mode operation improves efficiency at light loads.Other features include <1μA shutdown current, integrated soft-start, short-circuit protection, current limit and thermal overload protection. The LTC3113 is housed in the thermally enhanced 16-lead (4mm × 5mm × 0.75mm) DFN and 20-lead TSSOP packages.ApplicationsWireless ModemsBackup Power SystemsPortable Inventory TerminalsPortable Barcode ReadersPortable Instrumentation | Positive | Adjustable | 1.8 V | Buck-Boost | 3 A | Surface Mount | 0.173 in, 4.4 mm | 20-TSSOP, Exposed Pad | 2 MHz | 300 kHz | 125 ¯C | -40 °C | 5.5 V | Step-Up/Step-Down | 1 | 5.5 V | 1.8 V | 20-TSSOP-EP | |
Analog Devices Inc LTC3113EDHD#PBFThe LTC3113 is a wide VINrange, highly efficient, fixed frequency, buck-boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides low noise operation, making it well suited for RF and precision measurement applications.The LTC3113 can deliver up to 3A of continuous output current to satisfy the most demanding applications. Higher output current is possible in stepdown (buck) mode. Integrated low RDS(ON)power MOSFETs and a programmable switching frequency up to 2MHz result in a compact solution footprint. Selectable Burst Mode operation improves efficiency at light loads.Other features include <1μA shutdown current, integrated soft-start, short-circuit protection, current limit and thermal overload protection. The LTC3113 is housed in the thermally enhanced 16-lead (4mm × 5mm × 0.75mm) DFN and 20-lead TSSOP packages.ApplicationsWireless ModemsBackup Power SystemsPortable Inventory TerminalsPortable Barcode ReadersPortable Instrumentation | Positive | Adjustable | 1.8 V | Buck-Boost | 3 A | Surface Mount | 16-WFDFN Exposed Pad | 2 MHz | 300 kHz | 125 ¯C | -40 °C | 5.5 V | Step-Up/Step-Down | 1 | 5.5 V | 1.8 V | 16-DFN (5x4) | ||
Analog Devices Inc LTC3113IDHD#TRPBFThe LTC3113 is a wide VINrange, highly efficient, fixed frequency, buck-boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides low noise operation, making it well suited for RF and precision measurement applications.The LTC3113 can deliver up to 3A of continuous output current to satisfy the most demanding applications. Higher output current is possible in stepdown (buck) mode. Integrated low RDS(ON)power MOSFETs and a programmable switching frequency up to 2MHz result in a compact solution footprint. Selectable Burst Mode operation improves efficiency at light loads.Other features include <1μA shutdown current, integrated soft-start, short-circuit protection, current limit and thermal overload protection. The LTC3113 is housed in the thermally enhanced 16-lead (4mm × 5mm × 0.75mm) DFN and 20-lead TSSOP packages.ApplicationsWireless ModemsBackup Power SystemsPortable Inventory TerminalsPortable Barcode ReadersPortable Instrumentation | Positive | Adjustable | 1.8 V | Buck-Boost | 3 A | Surface Mount | 16-WFDFN Exposed Pad | 2 MHz | 300 kHz | 125 ¯C | -40 °C | 5.5 V | Step-Up/Step-Down | 1 | 5.5 V | 1.8 V | 16-DFN (5x4) | ||
Analog Devices Inc LTC3113IFE#PBFThe LTC3113 is a wide VINrange, highly efficient, fixed frequency, buck-boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides low noise operation, making it well suited for RF and precision measurement applications.The LTC3113 can deliver up to 3A of continuous output current to satisfy the most demanding applications. Higher output current is possible in stepdown (buck) mode. Integrated low RDS(ON)power MOSFETs and a programmable switching frequency up to 2MHz result in a compact solution footprint. Selectable Burst Mode operation improves efficiency at light loads.Other features include <1μA shutdown current, integrated soft-start, short-circuit protection, current limit and thermal overload protection. The LTC3113 is housed in the thermally enhanced 16-lead (4mm × 5mm × 0.75mm) DFN and 20-lead TSSOP packages.ApplicationsWireless ModemsBackup Power SystemsPortable Inventory TerminalsPortable Barcode ReadersPortable Instrumentation | Positive | Adjustable | 1.8 V | Buck-Boost | 3 A | Surface Mount | 0.173 in, 4.4 mm | 20-TSSOP, Exposed Pad | 2 MHz | 300 kHz | 125 ¯C | -40 °C | 5.5 V | Step-Up/Step-Down | 1 | 5.5 V | 1.8 V | 20-TSSOP-EP | |
Analog Devices Inc LTC3113IFE#TRPBFThe LTC3113 is a wide VINrange, highly efficient, fixed frequency, buck-boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides low noise operation, making it well suited for RF and precision measurement applications.The LTC3113 can deliver up to 3A of continuous output current to satisfy the most demanding applications. Higher output current is possible in stepdown (buck) mode. Integrated low RDS(ON)power MOSFETs and a programmable switching frequency up to 2MHz result in a compact solution footprint. Selectable Burst Mode operation improves efficiency at light loads.Other features include <1μA shutdown current, integrated soft-start, short-circuit protection, current limit and thermal overload protection. The LTC3113 is housed in the thermally enhanced 16-lead (4mm × 5mm × 0.75mm) DFN and 20-lead TSSOP packages.ApplicationsWireless ModemsBackup Power SystemsPortable Inventory TerminalsPortable Barcode ReadersPortable Instrumentation | Positive | Adjustable | 1.8 V | Buck-Boost | 3 A | Surface Mount | 0.173 in, 4.4 mm | 20-TSSOP, Exposed Pad | 2 MHz | 300 kHz | 125 ¯C | -40 °C | 5.5 V | Step-Up/Step-Down | 1 | 5.5 V | 1.8 V | 20-TSSOP-EP |
Description
General part information
LTC3113 Series
The LTC3113 is a wide VINrange, highly efficient, fixed frequency, buck-boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides low noise operation, making it well suited for RF and precision measurement applications.The LTC3113 can deliver up to 3A of continuous output current to satisfy the most demanding applications. Higher output current is possible in stepdown (buck) mode. Integrated low RDS(ON)power MOSFETs and a programmable switching frequency up to 2MHz result in a compact solution footprint. Selectable Burst Mode operation improves efficiency at light loads.Other features include <1μA shutdown current, integrated soft-start, short-circuit protection, current limit and thermal overload protection. The LTC3113 is housed in the thermally enhanced 16-lead (4mm × 5mm × 0.75mm) DFN and 20-lead TSSOP packages.ApplicationsWireless ModemsBackup Power SystemsPortable Inventory TerminalsPortable Barcode ReadersPortable Instrumentation
