1241.2411.5
ActiveSCHURTER Inc.

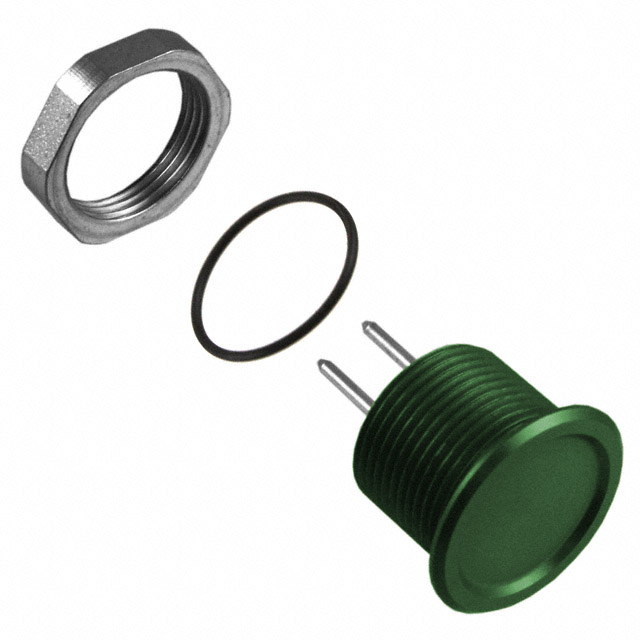

SWITCH PUSH SPST-NO 100MA 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.2411.5
ActiveSCHURTER Inc.
SWITCH PUSH SPST-NO 100MA 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.2411.5 | 1241.2411 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPST-NO | SPST-NO |
| Color - Actuator/Cap | Green | Black, Gold, Green |
| Current Rating (Amps) | 100 mA | 100 mA |
| Electrical Life | 20000000 Cycles | 20000000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Panel Cutout Dimensions [diameter] | 16.2 mm | 16.2 mm |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | PC Pin | PC Pin |
| Type | Piezo | Piezo |
| Voltage Rating - AC | 42 V | 42 V |
| Voltage Rating - DC | 60 VDC | 60 VDC |
1241.2411 Series
SWITCH PUSH SPST-NO 100MA 42V
| Part | Circuit | Voltage Rating - DC | Termination Style | Mounting Type | Actuator Type | Color - Actuator/Cap | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Switch Function | Panel Cutout Dimensions [diameter] | Actuator Marking | Current Rating (Amps) | Type | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.2411.7 | SPST-NO | 60 VDC | PC Pin | Panel Mount, Front | Button, Flush, Round | Black | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | 42 V | Off-Mom | 16.2 mm | No Marking | 100 mA | Piezo | 20000000 Cycles |
SCHURTER Inc. 1241.2411.1 | SPST-NO | 60 VDC | PC Pin | Panel Mount, Front | Button, Flush, Round | Gold | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | 42 V | Off-Mom | 16.2 mm | No Marking | 100 mA | Piezo | 20000000 Cycles |
SCHURTER Inc. 1241.2411.5 | SPST-NO | 60 VDC | PC Pin | Panel Mount, Front | Button, Flush, Round | Green | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | 42 V | Off-Mom | 16.2 mm | No Marking | 100 mA | Piezo | 20000000 Cycles |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.43 | |
| 50 | $ 23.84 | |||
| 100 | $ 23.48 | |||
Description
General part information
1241.2411 Series
Pushbutton Switch SPST-NO Piezo Panel Mount, Front
