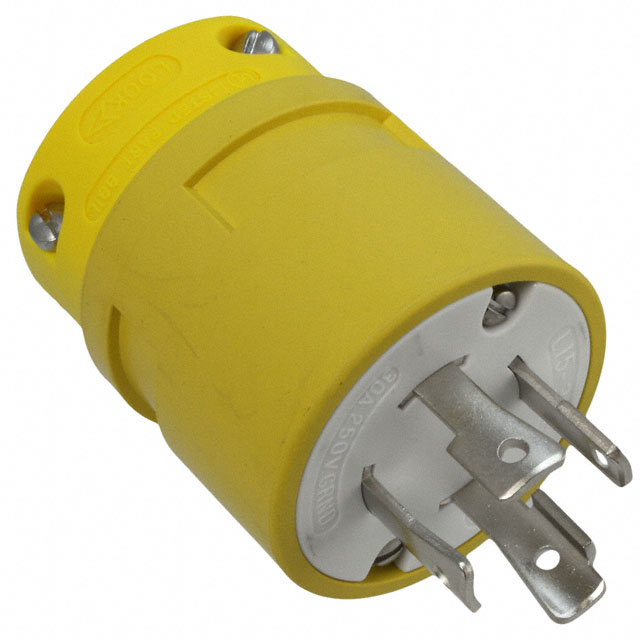

Specification	1301420037

Approval Agency	UL, CSA
Connector Style	NEMA L15-30P
Connector Type	Plug, Male Blades
Current Rating	30 A
Features	Locking Blade, Cord-Clamp Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Termination	Screw
Voltage Rating	250 V
Voltage Rating (Maximum)	250 V
Voltage Rating (Minimum)	250 VAC
Voltage Rating (Phase)	3 Phase

130142 Series

Super-Safeway Connector with Locking Blade, 3 Pole/3 Wire, Non-NEMA, 125V/250V Grounding Tab, Cord Grip Body Size F3

Part	Features	Approval Agency	Number of Positions	Connector Type	Voltage Rating	Voltage Rating (Phase)	Current Rating	Connector Style	Mounting Type	Termination	Voltage Rating (Option 1)	Voltage Rating (Option 2)	Voltage Rating (Minimum)	Voltage Rating (Maximum)
Molex 1301420014	Cord-Clamp Strain Relief Locking Blade	CSA UL	5	Male Blades Plug	208 VAC 208 VAC	3 Phase	20 A	NEMA L21-20P	Free Hanging (In-Line)	Screw
Molex 1301420017	Cord-Clamp Strain Relief Locking Blade	CSA UL	3	Female Sockets Receptacle			20 A	NON-NEMA (3P3W)	Free Hanging (In-Line)	Screw	125 VAC	250 VAC
Molex 1301420039	Cord-Clamp Strain Relief Locking Blade	CSA UL	4	Male Blades Plug	600 V		30 A	NEMA L17-30P	Free Hanging (In-Line)	Screw
Molex 1301420025	Cord-Clamp Strain Relief Locking Blade	CSA UL	4	Female Sockets Receptacle	250 V	3 Phase	20 A	NEMA L15-20R	Free Hanging (In-Line)	Screw			250 VAC	250 V
Molex 1301420023	Cord-Clamp Strain Relief Locking Blade	CSA UL	3	Female Sockets Receptacle	277 VAC		20 A	NEMA L7-20R	Free Hanging (In-Line)	Screw
Molex 1301420033	Cord-Clamp Strain Relief Locking Blade	CSA UL	3	Male Blades Plug	125 V		30 A	NEMA L5-30P	Free Hanging (In-Line)	Screw
Molex 1301420045	Cord-Clamp Strain Relief Locking Blade	CSA UL	4	Female Sockets Receptacle	480 VAC 480 VAC	3 Phase	30 A	NEMA L16-30R	Free Hanging (In-Line)	Screw
Molex 1301420031	Cord-Clamp Strain Relief Locking Blade	CSA UL	3	Male Blades Plug	250 V		30 A	NON-NEMA (3P3W)	Free Hanging (In-Line)	Screw
Molex 1301420009	Locking Blade	CSA UL	4	Male Blades Plug			20 A	NEMA L14-20P	Free Hanging (In-Line)	Screw	125 VAC	250 VAC
Molex 1301420015	Cord-Clamp Strain Relief Locking Blade	CSA UL	5	Male Blades Plug	480 VAC 480 VAC	3 Phase	20 A	NEMA L22-20P	Free Hanging (In-Line)	Screw
