1241.6823.1114000
ActiveSCHURTER Inc.

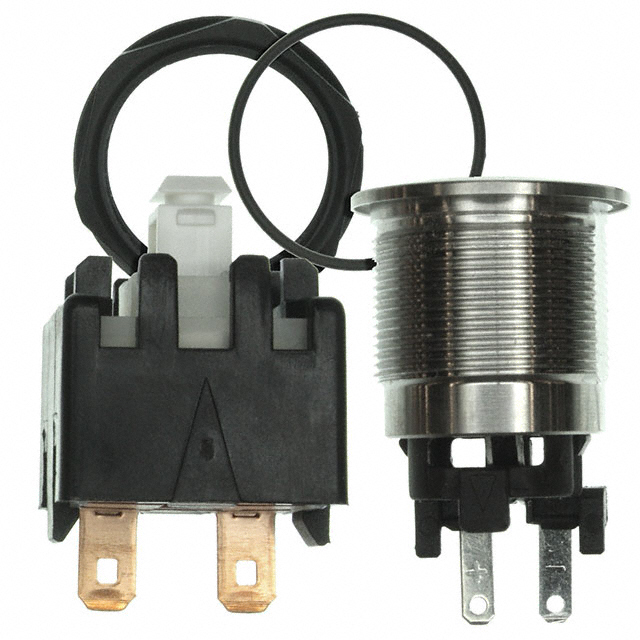

SWITCH PUSHBUTTON SPST 12A 250V
Deep-Dive with AI
Search across all available documentation for this part.
1241.6823.1114000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON SPST 12A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.6823.1114000 | 1241.6823 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Round, Button | Round, Button |
| Circuit | SPST | SPST, DPST |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 12 A | 12 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Illumination Type, Color | LED, Blue | LED, Blue, Red |
| Illumination Voltage (Nominal) | 3.7 VDC | 1.9 - 3.7 VDC |
| Ingress Protection | IP64 - Dust Tight, Water Resistant | IP64 - Dust Tight, Water Resistant |
| Mechanical Life | 100000 Cycles | 100000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Panel Cutout Dimensions [diameter] | 19.1 mm | 19.1 mm |
| Switch Function | Off-On | Off-On |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) |
| Type | Anti-Vandal, Illuminated | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 250 V | 250 V |
| Voltage Rating - DC | 30 V | 30 V |
1241.6823 Series
SWITCH PUSHBUTTON SPST 12A 250V
| Part | Electrical Life | Illumination Type, Color | Ingress Protection | Termination Style | Type | Circuit | Illumination Voltage (Nominal) | Actuator Type | Voltage Rating - AC | Actuator Marking | Color - Actuator/Cap | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Mounting Type | Switch Function | Current Rating (Amps) | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.6823.1114000 | 50000 Cycles | Blue, LED | IP64 - Dust Tight, Water Resistant | Quick Connect - 0.187" (4.7mm) | Anti-Vandal, Illuminated | SPST | 3.7 VDC | Button, Round | 250 V | No Marking | Silver | 100000 Cycles | 85 °C | -20 C | 19.1 mm | Panel Mount, Front | Off-On | 12 A | 30 V |
SCHURTER Inc. 1241.6823.1121000 | 50000 Cycles | LED, Red | IP64 - Dust Tight, Water Resistant | Quick Connect - 0.187" (4.7mm) | Anti-Vandal, Illuminated | DPST | 1.9 VDC | Button, Round | 250 V | No Marking | Silver | 100000 Cycles | 85 °C | -20 C | 19.1 mm | Panel Mount, Front | Off-On | 12 A | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.50 | |
| 50 | $ 28.67 | |||
Description
General part information
1241.6823 Series
Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front
