Technical Specifications
Parameters and characteristics for this part
| Specification | CSW65-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 1.36 A |
| Efficiency | Level VI |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Size / Dimension [x] | 4.75 " |
| Size / Dimension [x] | 120.7 mm |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38.1 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 305 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CSW65-48

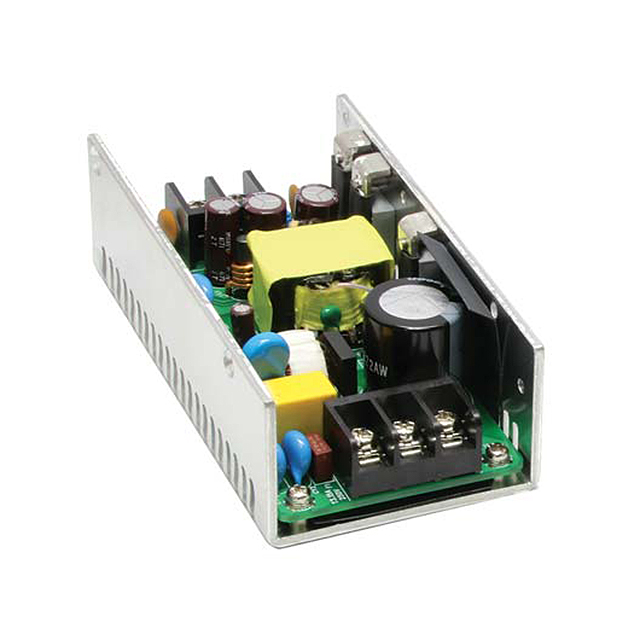

The CSW65-48 from TDK-Lambda is an U-channel AC to DC power supply. Approved by UL/CSA/IEC/EN60950-1 safety standards.
