BAT30-09P6FILM

Active

STMicroelectronics

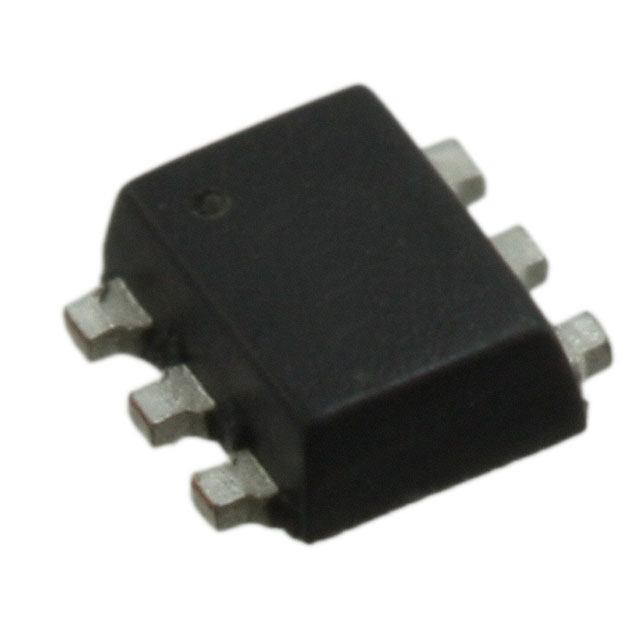

DIODE ARR SCHOT 30V 300MA SOT666

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BAT30-09P6FILM

Active

STMicroelectronics

DIODE ARR SCHOT 30V 300MA SOT666

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BAT30-09P6FILM	BAT30 Series

	-	-
Capacitance @ Vr, F	-	22 pF
Current - Average Rectified (Io)	-	300 mA
Current - Average Rectified (Io) (per Diode)	300 mA	300 mA
Current - Reverse Leakage @ Vr	5 µA	5 - 50 µA
Diode Configuration	2 Independent	1 Pair Series Connection, 2 Independent, 1 Pair Common Cathode, 1 Pair Common Anode
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction	150 °C	150 °C
Operating Temperature - Junction	-	85 °C
Operating Temperature - Junction	-	-30 °C
Package / Case	SOT-666, SOT-563	SOT-23-3, TO-236-3, SC-59, SC-70, SOT-323, 0201, SOT-666, SOT-563, SOD-923
Package / Case	-	0603 Metric
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	SOT-666	SOT-23-3, SOT-323, 0201, SOT-666, SOD-923
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V	30 V
Voltage - Forward (Vf) (Max) @ If	530 mV	310 - 530 mV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

BAT30 Series

SMALL SIGNAL SCHOTTKY DIODE, SINGLE, 30 V, 300 MA, 580 MV, 1 A, 150 °C, SOD-523, 2 PINS

Part	Supplier Device Package	Operating Temperature - Junction	Current - Average Rectified (Io) (per Diode)	Package / Case	Mounting Type	Diode Configuration	Technology	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Current - Average Rectified (Io)	Capacitance @ Vr, F
STMicroelectronics BAT30KFILM
STMicroelectronics BAT30SWFILM
STMicroelectronics BAT30KFILM
STMicroelectronics BAT30SFILM	SOT-23-3	150 °C	300 mA	SC-59, SOT-23-3, TO-236-3	Surface Mount	1 Pair Series Connection	Schottky	200 mA, 500 ns	530 mV	5 µA	30 V
STMicroelectronics BAT30SWFILM	SOT-323	150 °C	300 mA	SC-70, SOT-323	Surface Mount	1 Pair Series Connection	Schottky	200 mA, 500 ns	530 mV	5 µA	30 V
STMicroelectronics BAT30F4
STMicroelectronics BAT30CWFILM
STMicroelectronics BAT30F4	0201			0201	Surface Mount		Schottky	200 mA, 500 ns	310 mV	50 çA	30 V	85 °C	-30 °C	0603 Metric	300 mA
STMicroelectronics BAT30KFILM
STMicroelectronics BAT30-07P6FILM	SOT-666	150 °C	300 mA	SOT-563, SOT-666	Surface Mount	2 Independent	Schottky	200 mA, 500 ns	530 mV	5 µA	30 V
STMicroelectronics BAT30LFILM	SOD-923	150 °C		SOD-923	Surface Mount		Schottky	200 mA, 500 ns	530 mV	5 µA	30 V				300 mA	22 pF
STMicroelectronics BAT30F4
STMicroelectronics BAT30CWFILM	SOT-323	150 °C	300 mA	SC-70, SOT-323	Surface Mount	1 Pair Common Cathode	Schottky	200 mA, 500 ns	530 mV	5 µA	30 V
STMicroelectronics BAT30AFILM	SOT-23-3	150 °C	300 mA	SC-59, SOT-23-3, TO-236-3	Surface Mount	1 Pair Common Anode	Schottky	200 mA, 500 ns	530 mV	5 µA	30 V
STMicroelectronics BAT30F4
STMicroelectronics BAT30-09P6FILM	SOT-666	150 °C	300 mA	SOT-563, SOT-666	Surface Mount	2 Independent	Schottky	200 mA, 500 ns	530 mV	5 µA	30 V
STMicroelectronics BAT30KFILM
STMicroelectronics BAT30SWFILM

Description

General part information

BAT30 Series

Diode Array 2 Independent 30 V 300mA (DC) Surface Mount SOT-563, SOT-666
