DG1209EVKIT#

Active

Analog Devices Inc./Maxim Integrated

DG1209 EVALUATION KIT

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

DG1209 EVALUATION KIT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DG1209EVKIT#	DG1209 Series

-3db Bandwidth	-	250 MHz
Channel Capacitance (CS(off), CD(off))	-	15 pF
Channel Capacitance (CS(off), CD(off))	-	10 pF
Channel-to-Channel Matching (ΔRon)	-	30 Ohm
Charge Injection	-	0.5 pC
Crosstalk	-	-80 dB
Current - Leakage (IS(off)) (Max)	-	30 µA
Embedded	False	False
Function	Multiplexer	Multiplexer
Mounting Type	-	Surface Mount
Multiplexer/Demultiplexer Circuit	-	4:1
Number of Circuits	-	2
On-State Resistance (Max)	-	160 Ohms
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	0.173 in
Package / Case	-	16-TSSOP
Package / Case	-	4.4 mm
Primary Attributes	100 mA, 20 V	20 - 100 mA
Primary Attributes	Tri-Output DC Power Supply	Tri-Output DC Power Supply
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	16-TSSOP
Switch Time (Ton, Toff) (Max)	-	400 ns
Switch Time (Ton, Toff) (Max)	-	400 ns
Type	Interface	Interface
Utilized IC / Part	DG1209	DG1209
Voltage - Supply, Dual (V±)	-	15 V
Voltage - Supply, Dual (V±)	-	-15 V
Voltage - Supply, Single (V+)	-	10 V
Voltage - Supply, Single (V+)	-	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 60.00

IC MUX DUAL 4:1 160OHM 16TSSOP

Part	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Charge Injection	Package / Case [x]	Package / Case	Package / Case [y]	-3db Bandwidth	Multiplexer/Demultiplexer Circuit	Mounting Type	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Channel-to-Channel Matching (ΔRon)	Number of Circuits	On-State Resistance (Max) [Max]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Crosstalk	Current - Leakage (IS(off)) (Max)	Supplier Device Package	Utilized IC / Part	Primary Attributes	Primary Attributes	Supplied Contents	Embedded	Function	Type
Analog Devices Inc./Maxim Integrated DG1209EUE+	10 V	20 V	0.5 pC	0.173 in	16-TSSOP	4.4 mm	250 MHz	4:1	Surface Mount	15 V	-15 V	30 Ohm	2	160 Ohms	400 ns	400 ns	85 °C	-40 °C	15 pF	10 pF	-80 dB	30 µA	16-TSSOP
Analog Devices Inc./Maxim Integrated DG1209EVKIT#																								DG1209	20 V, 100 mA	Tri-Output DC Power Supply	Board(s)		Multiplexer	Interface

General part information

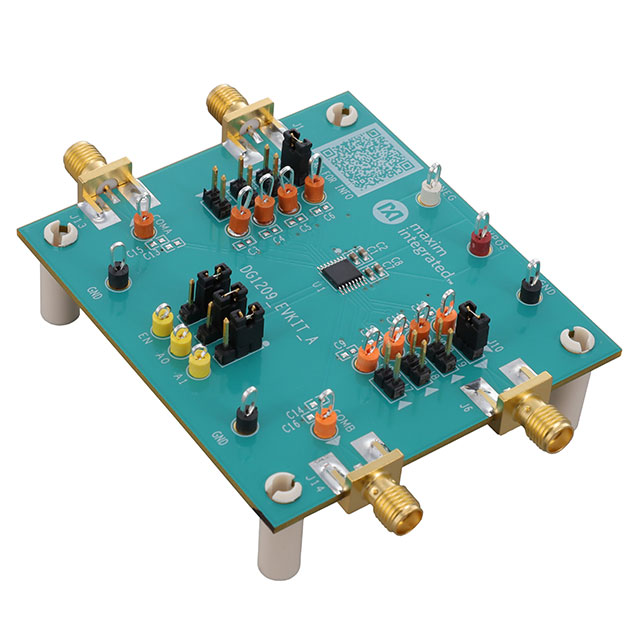

DG1209 Multiplexer Interface Evaluation Board
