828549-2

Active

TE Connectivity AMP Connectors

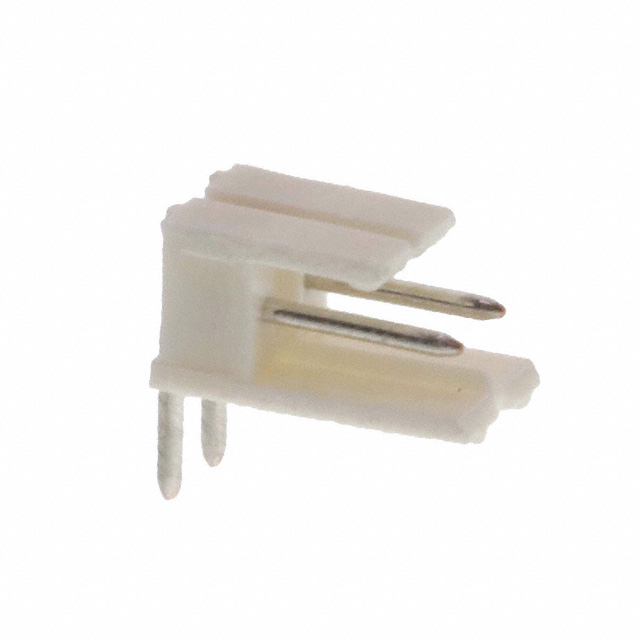

CONN HEADER R/A 2POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 2POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	828549-2	828549 Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	5.21 mm	5.21 mm
Contact Length - Mating	0.205 in	0.205 in
Contact Length - Post	0.114 in	0.114 in
Contact Length - Post	2.9 mm	2.9 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Fastening Type	Friction Lock	Friction Lock, Push-Pull
Insulation Color	Natural	Natural
Insulation Height	4.9 mm	4.9 mm
Insulation Height	0.193 in	0.193 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	2	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 2 Wall	Shrouded - 2 Wall, Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

CONN HEADER R/A 2POS 2.54MM

Part	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Shape	Insulation Height	Insulation Height	Number of Positions	Insulation Material	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Material	Connector Type	Termination	Shrouding	Material Flammability Rating	Insulation Color	Mounting Type	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Style
TE Connectivity AMP Connectors 828549-2	Male Pin	2 çm	78.7 çin	All	Circular	4.9 mm	0.193 in	2	Polybutylene Terephthalate (PBT), Glass Filled	0.1 in	2.54 mm	Friction Lock	Copper Alloy	Header	Solder	Shrouded - 2 Wall	UL94 V-0	Natural	Through Hole, Right Angle	1	5.21 mm	0.205 in	0.114 in	2.9 mm	Tin	Board to Cable/Wire
TE Connectivity AMP Connectors 828549-6	Male Pin	2 çm	78.7 çin	All	Circular	4.9 mm	0.193 in	6	Polybutylene Terephthalate (PBT), Glass Filled	0.1 in	2.54 mm	Friction Lock	Copper Alloy	Header	Solder	Shrouded - 2 Wall	UL94 V-0	Natural	Through Hole, Right Angle	1	5.21 mm	0.205 in	0.114 in	2.9 mm	Tin	Board to Cable/Wire
TE Connectivity AMP Connectors 828549-4	Male Pin			All	Circular	4.9 mm	0.193 in	4	Polybutylene Terephthalate (PBT), Glass Filled	0.1 in	2.54 mm	Push-Pull	Copper Alloy	Header	Solder	Shrouded - 4 Wall		Natural	Through Hole, Right Angle	1			0.114 in	2.9 mm		Board to Cable/Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
