OED-EL-1L1
ActiveLumex Opto/Components Inc.

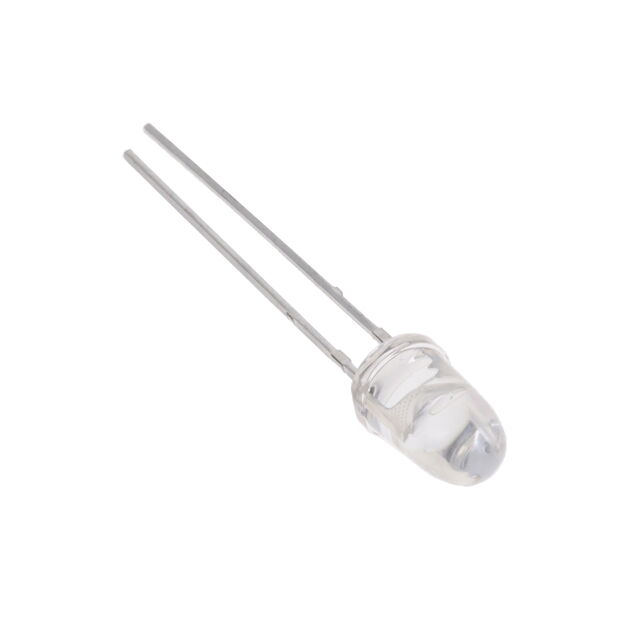

EMITTER IR 940NM 100MA RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OED-EL-1L1
ActiveLumex Opto/Components Inc.
EMITTER IR 940NM 100MA RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OED-EL-1L1 | OED-EL-1 Series |
|---|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA | 100 mA |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 85 C | 85 C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Orientation | Top View | Top View |
| Package / Case | Radial | Radial |
| Radiant Intensity (Ie) Min @ If | 7.8 mW/sr | 7.8 mW/sr |
| Radiant Intensity (Ie) Min @ If | - | 60 mW/sr |
| Type | Infrared (IR) | Infrared (IR) |
| Viewing Angle | 20 ° | 20 - 60 ° |
| Wavelength | 940 nm | 940 nm |
OED-EL-1 Series
EMITTER IR 940NM 100MA RADIAL
| Part | Type | Current - DC Forward (If) (Max) [Max] | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Radiant Intensity (Ie) Min @ If [Min] | Wavelength | Viewing Angle | Mounting Type | Package / Case | Radiant Intensity (Ie) Min @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. OED-EL-1L2 | Infrared (IR) | 100 mA | Top View | 85 C | -25 °C | 60 mW/sr | 940 nm | 60 ° | Through Hole | Radial | |
Lumex Opto/Components Inc. OED-EL-1L1 | Infrared (IR) | 100 mA | Top View | 85 C | -25 °C | 940 nm | 20 ° | Through Hole | Radial | 7.8 mW/sr |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.72 | |
| 10 | $ 0.48 | |||
| 100 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| 2000 | $ 0.22 | |||
| 5000 | $ 0.21 | |||
| 10000 | $ 0.20 | |||
| 25000 | $ 0.19 | |||
Description
General part information
OED-EL-1 Series
Infrared (IR) Emitter 940nm 1.2V 100mA 7.8mW/sr @ 20mA 20° Radial
