TJT5001R0J
ActiveTE Connectivity AMP Connectors

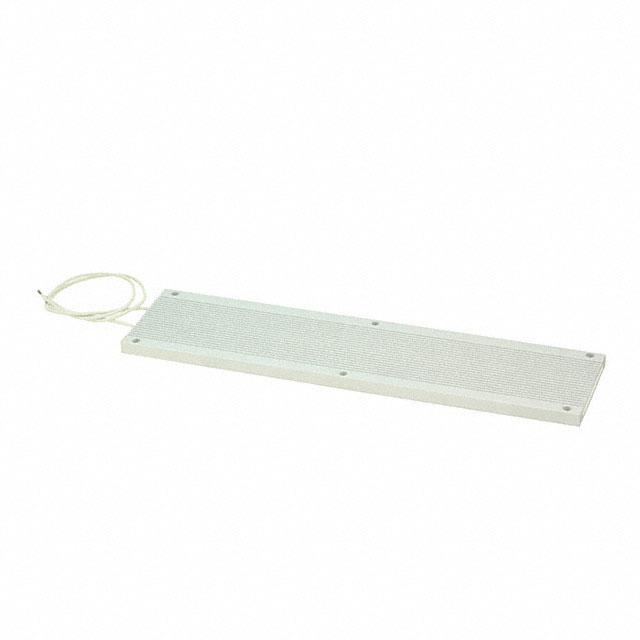

RES CHAS MNT 1 OHM 5% 500W
Deep-Dive with AI
Search across all available documentation for this part.
TJT5001R0J
ActiveTE Connectivity AMP Connectors
RES CHAS MNT 1 OHM 5% 500W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TJT5001R0J |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] | 0.394 in |
| Height - Seated (Max) [Max] | 10 mm |
| Lead Style | Wire Leads |
| Mounting Feature | Screw Holes |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Rectangular Case |
| Power (Watts) | 500 W |
| Resistance | 1 Ohms |
| Size / Dimension [x] | 330 mm |
| Size / Dimension [x] | 12.99 in |
| Size / Dimension [y] | 3.15 in |
| Size / Dimension [y] | 80 mm |
| Temperature Coefficient | 260 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TJT50 Series
RES CHAS MNT 1 OHM 5% 500W
| Part | Coating, Housing Type | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Temperature Coefficient | Tolerance | Lead Style | Composition | Power (Watts) | Resistance | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors TJT5001R0J | Aluminum | Rectangular Case | 330 mm | 12.99 in | 3.15 in | 80 mm | -25 °C | 250 °C | 0.394 in | 10 mm | 260 ppm/°C | 5 % | Wire Leads | Wirewound | 500 W | 1 Ohms | Screw Holes |
Description
General part information
TJT50 Series
1 Ohms ±5% 500W Wirewound Chassis Mount Resistor
