ATS-06F-05-C2-R0

Active

Advanced Thermal Solutions Inc.

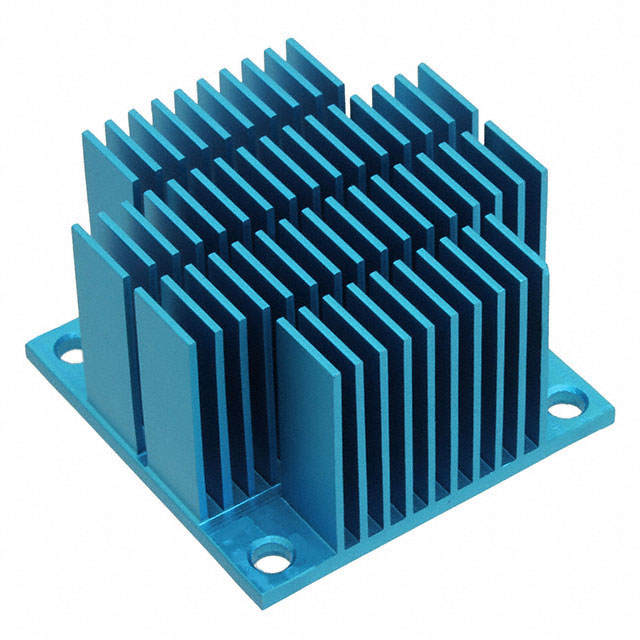

HEATSINK 40X40X25MM XCUT T766

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-06F-05-C2-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 40X40X25MM XCUT T766

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-06F-05-C2-R0

Attachment Method	Push Pin
Fin Height	0.984 in
Fin Height	25 mm
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	8.72 °C/W, 100 LFM
Type	Top Mount
Width [x]	1.575 in
Width [x]	40 mm

ATS-06F Series

...

Part	Package Cooled	Material	Material Finish	Fin Height	Fin Height	Type	Shape	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Attachment Method	Width	Length [x]	Length	Fin Height [z]	Fin Height [z]	Length	Width [y]	Width [y]	Width	Length [x]
Advanced Thermal Solutions Inc. ATS-06F-103-C3-R1	ASIC BGA CPU LGA	Aluminum	Blue Anodized	0.374 in	9.5 mm	Top Mount	Fins Square	1.575 in	40 mm	27.78 °C/W 100 LFM	Push Pin
Advanced Thermal Solutions Inc. ATS-06F-08-C3-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	0.59 "	15 mm	Top Mount	Fins Square	1.772 in		14.71 °C/W	Push Pin	45 mm	1.772 "	45 mm
Advanced Thermal Solutions Inc. ATS-06F-01-C2-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized			Top Mount	Fins Square	1.575 in	40 mm	21.93 °C/W	Push Pin				0.394 in	10 mm
Advanced Thermal Solutions Inc. ATS-06F-135-C1-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized			Top Mount	Fins Square			2.99 °C/W	Push Pin			70 mm	0.79 in	20 mm	2.756 "	2.756 in	70 mm
Advanced Thermal Solutions Inc. ATS-06F-192-C2-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	1.378 in	35 mm	Top Mount	Fins Square	1.772 in		2.35 °C/W	Push Pin	45 mm	1.772 "	45 mm
Advanced Thermal Solutions Inc. ATS-06F-79-C1-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized			Top Mount	Fins Square			26.32 °C/W 100 LFM	Push Pin	30 mm	1.181 in		0.394 in	10 mm				1.181 in	30 mm
Advanced Thermal Solutions Inc. ATS-06F-20-C2-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized	0.984 in	25 mm	Top Mount	Fins Square	2.126 "	54 mm	7.14 °C/W	Push Pin		2.126 "								54 mm
Advanced Thermal Solutions Inc. ATS-06F-197-C1-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized			Top Mount	Fins Square	1.772 in		10.86 °C/W 100 LFM	Push Pin	45 mm	1.772 "	45 mm	0.394 in	10 mm
Advanced Thermal Solutions Inc. ATS-06F-196-C2-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized			Top Mount	Fins Square	1.772 in		18.11 °C/W	Push Pin	45 mm	1.772 "	45 mm
Advanced Thermal Solutions Inc. ATS-06F-210-C2-R0	ASIC BGA CPU LGA	Aluminum	Blue Anodized			Top Mount	Fins Square			5.18 °C/W 100 LFM	Push Pin			70 mm	0.472 in	12 mm	2.756 "	2.756 in	70 mm
