LS10R
ObsoleteBANNER ENGINEERING

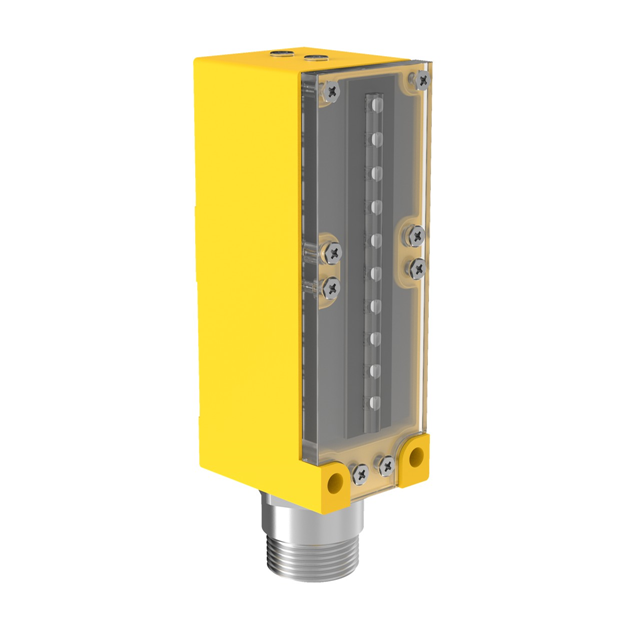

LIGHT SCREEN RECEIVER 100-1220MM
LS10R
ObsoleteBANNER ENGINEERING
LIGHT SCREEN RECEIVER 100-1220MM
Description
General part information
LS10R
Through-Beam Optical Sensor 3.94" ~ 48.03" (100mm ~ 1220mm) NPN/PNP
Technical Specifications
Parameters and characteristics for this part
| Specification | LS10R |
|---|---|
| Connection Method | Connector |
| Ingress Protection | NEMA 1, 2, 3, 12, 13 IEC IP54, IP54, 13, IEC |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 880 nm |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Output Configuration | NPN, PNP |
| Response Time | 10 ms |
| Sensing Distance Maximum | 48.03 " |
| Sensing Distance Minimum | 3.94 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
