031-334

Active

AMPHENOL RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE PLUG, CRIMP, 50 OHM, RG55, RG142, RG223, RG400

Deep-Dive with AI

Search across all available documentation for this part.

031-334

Active

AMPHENOL RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE PLUG, CRIMP, 50 OHM, RG55, RG142, RG223, RG400

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.85
		10	$ 35.77
		25	$ 34.22
		50	$ 33.12
		100	$ 32.02
		300	$ 30.25
Newark	Each	100	$ 40.32
		250	$ 38.49

Description

General part information

031-33 Series

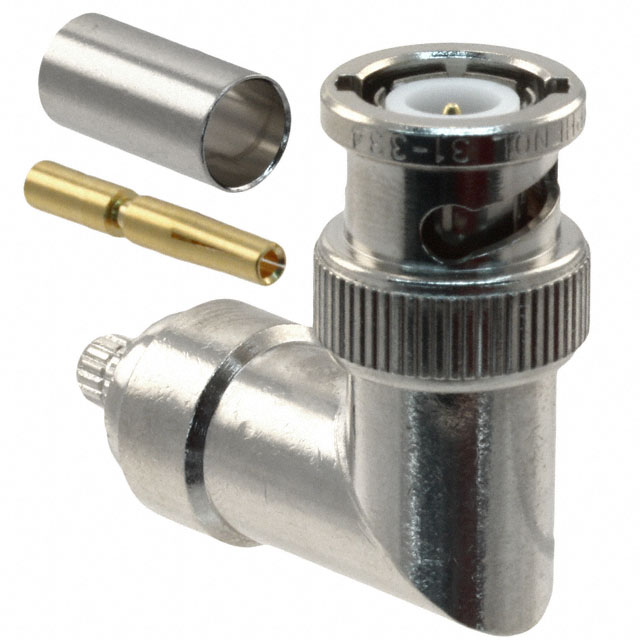

The 31-334 is a RF Connector, BNC series, BNC right angle Crimp Plug with gold-plated phosphor bronze contacts and crimp contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature, lightweight units useable up to 11GHz and typically yield low reflection through 4GHz. Designed to accommodate a large variety of RG and industry standard cables. This RF connector is designed for RG-142, RG-223, RG-400 and RG-55 cable.

Documents

Technical documentation and resources

No documents available

Specification	031-334	031-33 Series

	-	-
Body Finish	Nickel	Nickel, Silver
Body Material	Brass	Brass
Cable Group	RG-55	Belden 1426A, RG-59, 9100, 8281, 1501A, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, 140, 8263, 59B, 8279, 210, Belden 8241, 62, 9209, RG-55
Cable Group	223, 142, 400	142 - 400
Center Contact Material	Brass, Phosphor Bronze	Beryllium Copper, Zinc Die Cast, Phosphor Bronze, Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	Triaxial, BNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder, Crimp	Solder, Crimp, Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 - 500 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Impedance	-	Non-Constant
Includes	1 Ferrule, 1 Contact, 1 Connector	1 Ferrule, 1 Connector, 1 Heat Shrink, 1 Washer, 1 Contact, 2 Braid Clamps, 1 Clamp, 1 Gasket, 1 Spacer, 1 Nut, 1 Lockwasher, 2 Gaskets, Clamp, 1 Braid, Insulator, Braid Clamp, Washer, Contact, Gasket, Connector
Ingress Protection	-	Weatherproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Rear Side Nut
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Clamp, Crimp, Solder
Voltage Rating	500 V	500 V

Part

Center Contact Material

Shield Termination

Center Contact Plating

Body Finish

Ingress Protection

Housing Color

Impedance

Body Material

Mounting Type

Number of Ports

Fastening Type

Insertion Loss

Operating Temperature [Min]

Operating Temperature [Max]

Mating Cycles

Connector Type

Contact Termination

Dielectric Material

Frequency - Max [Max]

Includes

Connector Style

Impedance

Voltage Rating

Cable Group

Mounting Feature

Cable Group

AMPHENOL RF

031-33485-24

Beryllium Copper

Clamp

Gold

Nickel

Weatherproof

Silver

Non-Constant

Brass

Free Hanging (In-Line), Right Angle

Bayonet Lock

0.2 dB

-65 ░C

165 °C

500

Male Pin, Plug

Solder

Polytetrafluoroethylene (PTFE)

500 MHz

1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Heat Shrink, 1 Washer, 2 Braid Clamps

BNC, Triaxial

AMPHENOL RF

031-336

Phosphor Bronze, Zinc Die Cast

Crimp

Gold

Nickel

Silver

Brass

Free Hanging (In-Line), Right Angle

Bayonet Lock

0.2 dB

-65 ░C

165 °C

500

Male Pin, Plug

Crimp

Polytetrafluoroethylene (PTFE)

4 GHz

1 Connector, 1 Contact, 1 Ferrule

BNC

50 Ohms

500 V

1501A, 8281, 9100, Belden 1426A, RG-59

AMPHENOL RF

031-33546-17

Brass

Clamp

Gold

Nickel

Weatherproof

Silver

Non-Constant

Brass

Free Hanging (In-Line)

Bayonet Lock

0.2 dB

-65 ░C

165 °C

500

Female Socket, Jack

Solder

Polytetrafluoroethylene (PTFE)

500 MHz

1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut, 1 Spacer, 2 Braid Clamps, 2 Gaskets

BNC, Triaxial

AMPHENOL RF

031-33224-13

AMPHENOL RF

031-3301

Brass

Clamp

Gold

Silver

Weatherproof

Silver

Brass

Free Hanging (In-Line)

Bayonet Lock

0.2 dB

-65 ░C

165 °C

500

Male Pin, Plug

Solder

Polytetrafluoroethylene (PTFE)

4 GHz

1 Braid, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer, Clamp

BNC

50 Ohms

500 V

141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58

AMPHENOL RF

031-33546-16

Brass

Clamp

Gold

Nickel

Weatherproof

Silver

Non-Constant

Brass

Free Hanging (In-Line)

Bayonet Lock

0.2 dB

-65 ░C

165 °C

500

Female Socket, Jack

Solder

Polytetrafluoroethylene (PTFE)

500 MHz

1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut, 1 Spacer, 2 Braid Clamps, 2 Gaskets

BNC, Triaxial

AMPHENOL RF

031-3376

Phosphor Bronze

Solder

Gold

Silver

Brass

Bayonet Lock

0.2 dB

-65 ░C

165 °C

500

Female Socket, Jack

Solder Cup

Polytetrafluoroethylene (PTFE)

4 GHz

1 Connector, 1 Lockwasher, 1 Nut

BNC

50 Ohms

500 V

Bulkhead - Rear Side Nut

AMPHENOL RF

031-336-RFX

Brass

Crimp

Gold

Nickel

Silver

Brass

Free Hanging (In-Line), Right Angle

Bayonet Lock

0.2 dB

-65 ░C

165 °C

500

Male Pin, Plug

Crimp

Polyoxymethylene (POM) Acetal

4 GHz

1 Connector, 1 Contact, 1 Ferrule

BNC

50 Ohms

500 V

1501A, 8281, 9100, Belden 1426A, RG-59

AMPHENOL RF

031-335

Phosphor Bronze, Zinc Die Cast

Crimp

Gold

Nickel

Silver

Brass

Free Hanging (In-Line), Right Angle

Bayonet Lock

0.2 dB

-65 ░C

165 °C

500

Male Pin, Plug

Crimp

Polytetrafluoroethylene (PTFE)

4 GHz

1 Connector, 1 Contact, 1 Ferrule

BNC

50 Ohms

500 V

141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58

AMPHENOL RF

031-33546-8

Beryllium Copper

Clamp

Gold

Nickel

Weatherproof

Silver

Non-Constant

Brass

Free Hanging (In-Line), Right Angle

Bayonet Lock

0.2 dB

-65 ░C

165 °C

500

Male Pin, Plug

Solder

Polytetrafluoroethylene (PTFE)

500 MHz

1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Heat Shrink, 1 Washer, 2 Braid Clamps

BNC, Triaxial

Part	Center Contact Material	Shield Termination	Center Contact Plating	Body Finish	Ingress Protection	Housing Color	Impedance	Body Material	Mounting Type	Number of Ports	Fastening Type	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Connector Type	Contact Termination	Dielectric Material	Frequency - Max [Max]	Includes	Connector Style	Impedance	Voltage Rating	Cable Group	Mounting Feature
AMPHENOL RF 031-33485-24	Beryllium Copper	Clamp	Gold	Nickel	Weatherproof	Silver	Non-Constant	Brass	Free Hanging (In-Line), Right Angle	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Solder	Polytetrafluoroethylene (PTFE)	500 MHz	1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Heat Shrink, 1 Washer, 2 Braid Clamps	BNC, Triaxial
AMPHENOL RF 031-336	Phosphor Bronze, Zinc Die Cast	Crimp	Gold	Nickel		Silver		Brass	Free Hanging (In-Line), Right Angle	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	1 Connector, 1 Contact, 1 Ferrule	BNC	50 Ohms	500 V	1501A, 8281, 9100, Belden 1426A, RG-59
AMPHENOL RF 031-33546-17	Brass	Clamp	Gold	Nickel	Weatherproof	Silver	Non-Constant	Brass	Free Hanging (In-Line)	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Female Socket, Jack	Solder	Polytetrafluoroethylene (PTFE)	500 MHz	1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut, 1 Spacer, 2 Braid Clamps, 2 Gaskets	BNC, Triaxial
AMPHENOL RF 031-33224-13
AMPHENOL RF 031-3301	Brass	Clamp	Gold	Silver	Weatherproof	Silver		Brass	Free Hanging (In-Line)	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Solder	Polytetrafluoroethylene (PTFE)	4 GHz	1 Braid, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer, Clamp	BNC	50 Ohms	500 V	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58
AMPHENOL RF 031-33546-16	Brass	Clamp	Gold	Nickel	Weatherproof	Silver	Non-Constant	Brass	Free Hanging (In-Line)	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Female Socket, Jack	Solder	Polytetrafluoroethylene (PTFE)	500 MHz	1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut, 1 Spacer, 2 Braid Clamps, 2 Gaskets	BNC, Triaxial
AMPHENOL RF 031-3376	Phosphor Bronze	Solder	Gold	Silver		Silver		Brass		1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Female Socket, Jack	Solder Cup	Polytetrafluoroethylene (PTFE)	4 GHz	1 Connector, 1 Lockwasher, 1 Nut	BNC	50 Ohms	500 V		Bulkhead - Rear Side Nut
AMPHENOL RF 031-336-RFX	Brass	Crimp	Gold	Nickel		Silver		Brass	Free Hanging (In-Line), Right Angle	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Crimp	Polyoxymethylene (POM) Acetal	4 GHz	1 Connector, 1 Contact, 1 Ferrule	BNC	50 Ohms	500 V	1501A, 8281, 9100, Belden 1426A, RG-59
AMPHENOL RF 031-335	Phosphor Bronze, Zinc Die Cast	Crimp	Gold	Nickel		Silver		Brass	Free Hanging (In-Line), Right Angle	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	1 Connector, 1 Contact, 1 Ferrule	BNC	50 Ohms	500 V	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58
AMPHENOL RF 031-33546-8	Beryllium Copper	Clamp	Gold	Nickel	Weatherproof	Silver	Non-Constant	Brass	Free Hanging (In-Line), Right Angle	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Solder	Polytetrafluoroethylene (PTFE)	500 MHz	1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Heat Shrink, 1 Washer, 2 Braid Clamps	BNC, Triaxial
