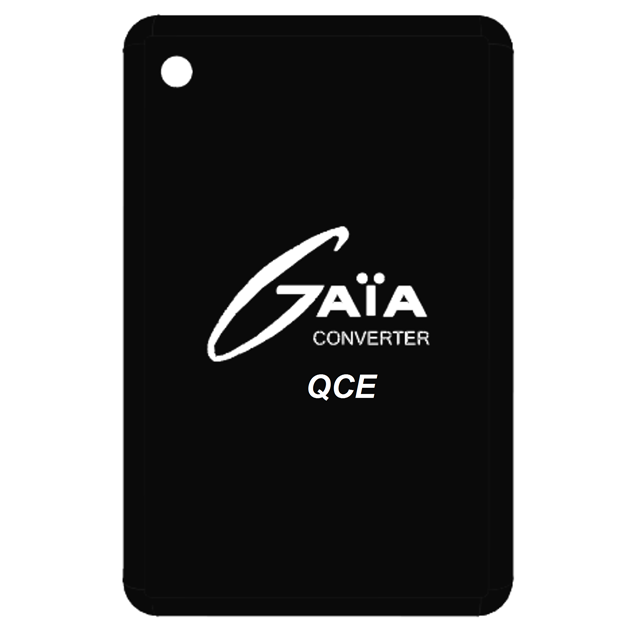

MGDBK10QC

Active

Gaia Converter

DC DC CONVERTER

Search across all available documentation for this part.

Active

Gaia Converter

DC DC CONVERTER

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER

Part	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Package / Case	Package / Case	Voltage - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Efficiency	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Features	Voltage - Output 2
Gaia Converter MGDBK10QE	10 W	160 V	36 V	ITE (Commercial)	Through Hole	1.57 in	26 mm	0.32 "	1.02 "	40 mm	8.2 mm	Isolated Module	8-DIP Module	4 Lead	12 V	1	-40 °C	203 °F	800 mA	80 %	1.5 kV
Gaia Converter MGDBK10DF	10 W	16 V	4.5 V	ITE (Commercial)	Through Hole	1.57 in	26 mm	0.32 "	1.02 "	40 mm	8.2 mm	Isolated Module	5 Leads, 8-DIP Module		15 V	2	-40 °C	203 °F		80 %	1.5 kV	330 mA	330 mA	Remote On/Off	-15 V
Gaia Converter MGDBK10QE/Y	10 W	160 V	36 V	ITE (Commercial)	Through Hole	1.57 in	26 mm	0.32 "	1.02 "	40 mm	8.2 mm	Isolated Module	8-DIP Module	4 Lead	12 V	1	-40 °C	203 °F	800 mA	80 %	1.5 kV
Gaia Converter MGDBK10QC	10 W	160 V	36 V	ITE (Commercial)	Through Hole	1.57 in	26 mm	0.32 "	1.02 "	40 mm	8.2 mm	Isolated Module	8-DIP Module	4 Lead	5 V	2	-40 °C	203 °F		80 %	1.5 kV	1 A	1 A		-5 V
Gaia Converter MGDBK10DC	10 W	16 V	4.5 V	ITE (Commercial)	Through Hole	1.57 in	26 mm	0.32 "	1.02 "	40 mm	8.2 mm	Isolated Module	5 Leads, 8-DIP Module		5 V	2	-40 °C	203 °F		80 %	1.5 kV	1 A	1 A	Remote On/Off	-5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 81.22

General part information

Isolated Module DC DC Converter 2 Output 5V -5V 1A, 1A 36V - 160V Input
