BGA0036
ActiveChip Quik Inc.

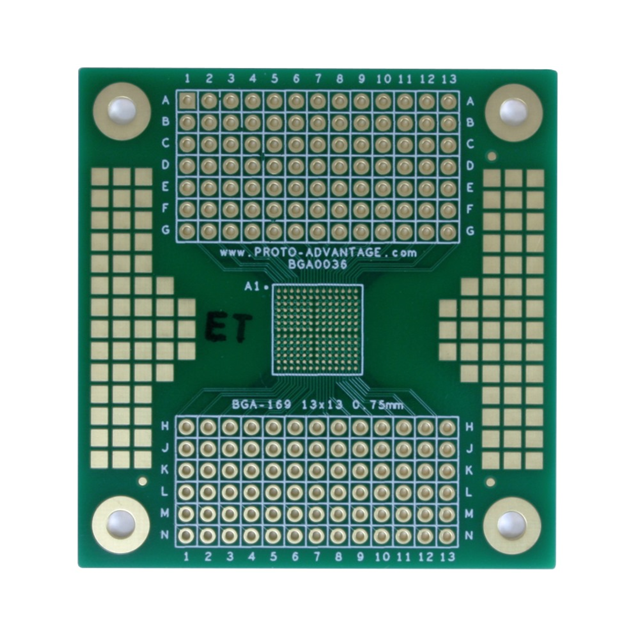

BGA-169 TO PGA-169 SMT ADAPTER (
BGA0036
ActiveChip Quik Inc.
BGA-169 TO PGA-169 SMT ADAPTER (
Description
General part information
BGA0036
BGA-169 TO PGA-169 SMT ADAPTER (
Technical Specifications
Parameters and characteristics for this part
| Specification | BGA0036 |
|---|---|
| Board Thickness | 0.063 in |
| Material | FR4 Epoxy Glass |
| Number of Positions | 169 |
| Package Accepted | BGA |
| Pitch | 0.03 in |
| Proto Board Type | SMD, PGA |
| Size / Dimension Length | 2.3 in |
| Size / Dimension Width | 2.2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
