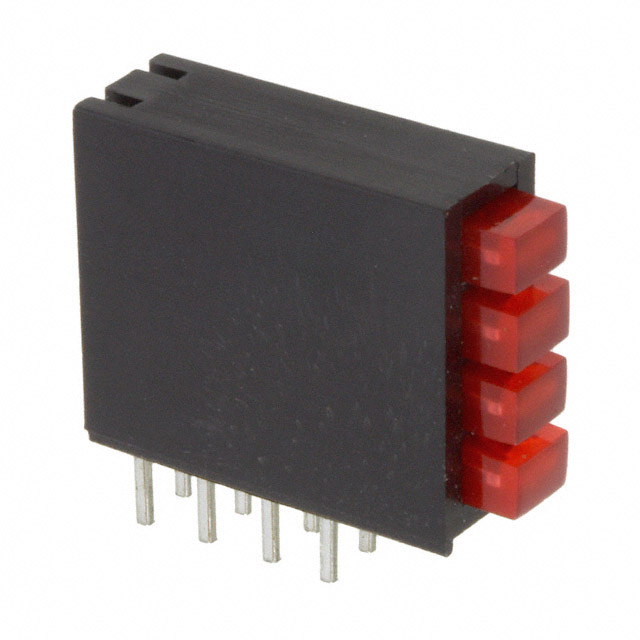

SSF-LXH534SID

Active

Lumex Opto/Components Inc.

LED CBI 3X2MM QUAD RED RA

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH534SID

Active

Lumex Opto/Components Inc.

LED CBI 3X2MM QUAD RED RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH534SID	SSF-LXH534 Series

Color	Red (x 4)	Green (x 4), Green (x 1), Yellow (x 1), Blue (x 1), Red (x 1), Red, Green, Red (x 4)
Configuration	4 High	4 High
Current	30 mA	20 - 30 mA
Current	-	20 mA
Current	-	20 mA
Current	-	20 mA
Current	-	20 mA
Lens Size [x]	3 mm	3 mm
Lens Size [y]	2 mm	2 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Type	Tinted, Diffused	Diffused, Tinted
Millicandela Rating	120 mcd	10 - 120 mcd
Millicandela Rating	-	80 mcd
Millicandela Rating	-	10 mcd
Millicandela Rating	-	10 mcd
Millicandela Rating	-	20 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	100 °	100 °
Voltage Rating	2 V	2 - 3.5 V
Wavelength - Peak	636 nm	470 - 636 nm

SSF-LXH534 Series

LED CBI 3X2MM QUAD GRN RA

Part	Lens Type	Configuration	Mounting Type	Current	Lens Style	Color	Viewing Angle	Lens Size [y]	Lens Size [x]	Millicandela Rating	Current [custom]	Current [custom]	Current [custom]	Current [custom]	Wavelength - Peak	Voltage Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSF-LXH534SUGD	Diffused	4 High	Through Hole, Right Angle	25 mA	Rectangle with Flat Top	Green (x 4)	100 °	2 mm	3 mm	30 mcd
Lumex Opto/Components Inc. SSF-LXH534IUSBGYD	Diffused	4 High	Through Hole, Right Angle		Rectangle with Flat Top	Blue (x 1), Green (x 1), Red (x 1), Yellow (x 1)	100 °	2 mm	3 mm		20 mA	20 mA	20 mA	20 mA	470 nm, 565 nm, 585 nm, 635 nm	2 V, 2.1 V, 2.2 V, 3.5 V	80 mcd	10 mcd	10 mcd	20 mcd
Lumex Opto/Components Inc. SSF-LXH534IGGGD	Diffused	4 High	Through Hole, Right Angle	20 mA, 20 mA	Rectangle with Flat Top	Green, Red	100 °	2 mm	3 mm	10 mcd, 20 mcd					565 nm, 635 nm	2 V, 2.2 V
Lumex Opto/Components Inc. SSF-LXH534SID	Diffused, Tinted	4 High	Through Hole, Right Angle	30 mA	Rectangle with Flat Top	Red (x 4)	100 °	2 mm	3 mm	120 mcd					636 nm	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.46
		10	$ 3.15
		100	$ 2.58
		650	$ 2.18
		1300	$ 2.00
		2600	$ 1.91
		5200	$ 1.88

Description

General part information

SSF-LXH534 Series

LED Circuit Board Indicator LED Circuit Board Indicator 4 High Red (x 4) Diffused, Tinted 2.0V 30mA Rectangle with Flat Top 3.00mm x 2.00mm Through Hole, Right Angle
