DC0019/01-TI900-0.12-2A
Activet-Global Technology

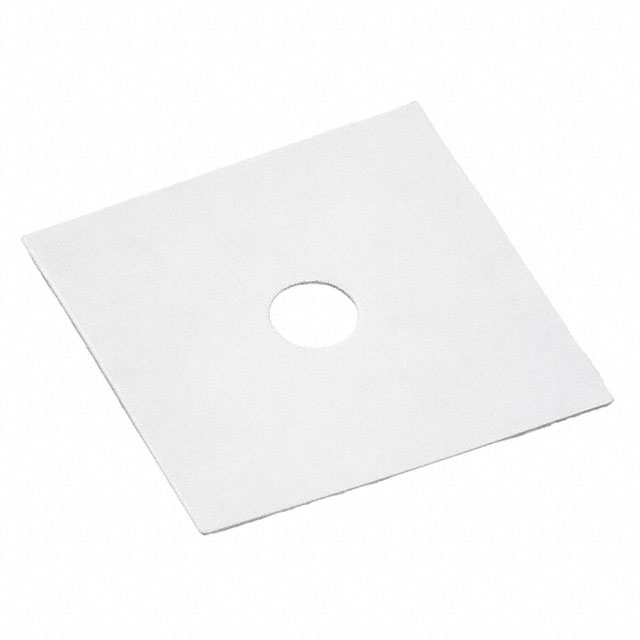

THERM PAD 25.4MMX25.4MM W/ADH
Deep-Dive with AI
Search across all available documentation for this part.
DC0019/01-TI900-0.12-2A
Activet-Global Technology
THERM PAD 25.4MMX25.4MM W/ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DC0019/01-TI900-0.12-2A | DC0019/01 Series |
|---|---|---|
| Adhesive | Adhesive - Both Sides | Adhesive - Both Sides |
| Backing, Carrier | Viscose | Viscose |
| Color | White | Red, Yellow, White, Gray |
| Material | Silicone | Silicone |
| Outline [x] | 25.4 mm | 25.4 mm |
| Outline [y] | 25.4 mm | 25.4 mm |
| Shape | Square | Square |
| Shelf Life | 24 Months | 12 - 24 Months |
| Shelf Life Start | - | Date of Purchase |
| Thermal Conductivity | 1.8 W/m-K | 1.4 - 6 W/m-K |
| Thickness | - | 0.1 mm |
| Thickness | - | 0.0039 in |
| Thickness | - | 0.254 - 0.305 mm |
| Thickness | - | 0.01 - 0.012 in |
| Thickness [x] | 0.005 in | 0.005 in |
| Thickness [x] | 0.127 mm | 0.127 mm |
| Type | Die-Cut Pad, Sheet | Die-Cut Pad, Sheet |
| Usage | Rectifier | Rectifier |
DC0019/01 Series
THERM PAD 25.4MMX25.4MM RED
| Part | Shelf Life Start | Shelf Life | Thickness | Thickness | Color | Outline [x] | Outline [y] | Shape | Type | Usage | Material | Thermal Conductivity | Adhesive | Thickness [custom] | Thickness [custom] | Backing, Carrier | Thickness [x] | Thickness [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology DC0019/01-TG-A482K-0.1-0 | Date of Purchase | 24 Months | 0.1 mm | 0.0039 in | Red | 25.4 mm | 25.4 mm | Square | Die-Cut Pad, Sheet | Rectifier | Silicone | 2.3 W/m-K | ||||||
t-Global Technology DC0019/01-TG-A373F-0.25-2A | 12 Months | Yellow | 25.4 mm | 25.4 mm | Square | Die-Cut Pad, Sheet | Rectifier | 1.4 W/m-K | Adhesive - Both Sides | 0.254 mm | 0.01 in | |||||||
t-Global Technology DC0019/01-TI900-0.12-2A | 24 Months | White | 25.4 mm | 25.4 mm | Square | Die-Cut Pad, Sheet | Rectifier | Silicone | 1.8 W/m-K | Adhesive - Both Sides | Viscose | 0.005 in | 0.127 mm | |||||
t-Global Technology DC0019/01-TG-A486G-0.3-2A | Date of Purchase | 12 Months | Gray | 25.4 mm | 25.4 mm | Square | Die-Cut Pad, Sheet | Rectifier | 6 W/m-K | Adhesive - Both Sides | 0.305 mm | 0.012 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 1.32 | |
Description
General part information
DC0019/01 Series
Thermal Pad White 25.40mm x 25.40mm Square Adhesive - Both Sides
