FMCA2787-100CM
ActiveFairview Microwave
CBL ASSY 3.5MMPLUG-3.5MMJACK 39.
FMCA2787-100CM
ActiveFairview Microwave
CBL ASSY 3.5MMPLUG-3.5MMJACK 39.
Description
General part information
FMCA2787-100CM

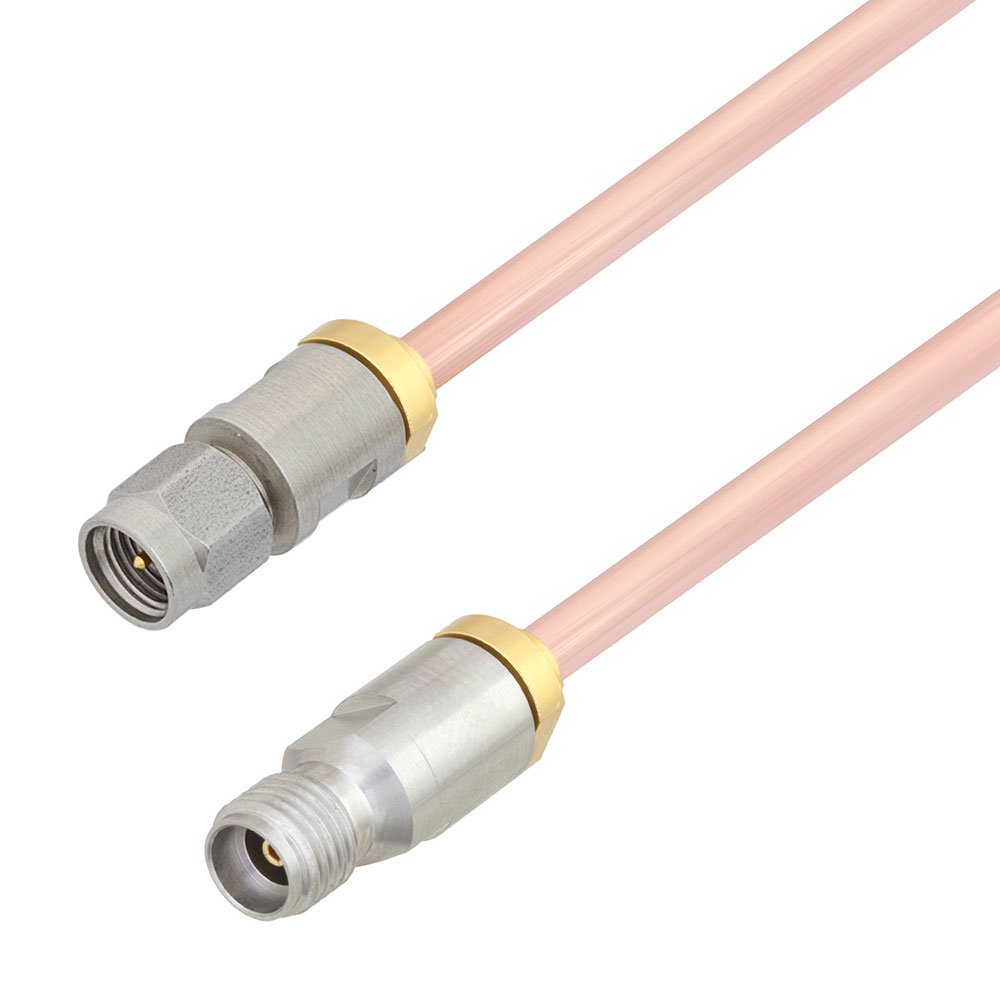

Cable Assembly Coaxial 3.5mm to 3.5mm Hand Formable .141 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2787-100CM |
|---|---|
| 1st Connector | Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 3.5 mm |
| 1st Contact Gender | Female |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 3.5 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 34 GHz |
| Length | 39.4 in |
| Overall Impedance | 50 Ohms |
| Style | 3.5mm to 3.5mm |
