FMAD1050
ObsoleteFairview Microwave
ADAPT PLUG-PLUG QMA 1.08 VSWR
FMAD1050
ObsoleteFairview Microwave
ADAPT PLUG-PLUG QMA 1.08 VSWR
Description
General part information
FMAD1050

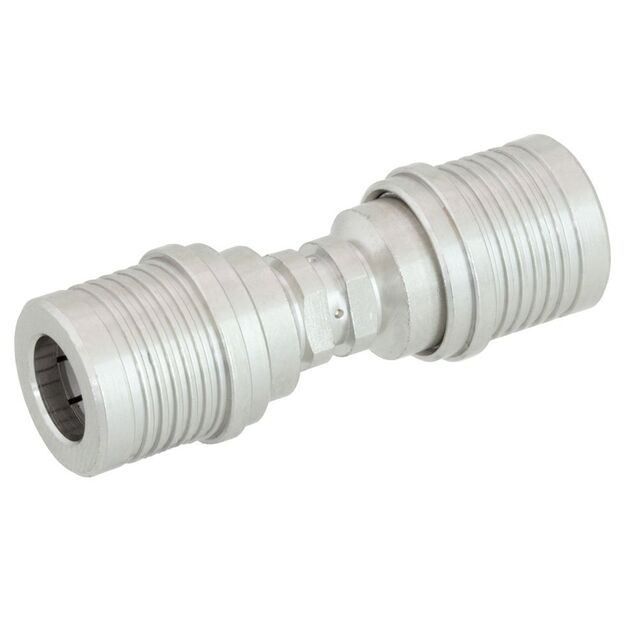

Adapter Coaxial Connector QMA Plug, Male Pin To QMA Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1050 |
|---|---|
| Adapter Series | QMA to QMA |
| Adapter Type | Plug to Plug |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Brass, Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Male Pin, QMA Plug |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | QMA Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.12 dB |
| Mating Cycles | 100 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Straight |
