NBF-32016
ActiveBUD INDUSTRIES

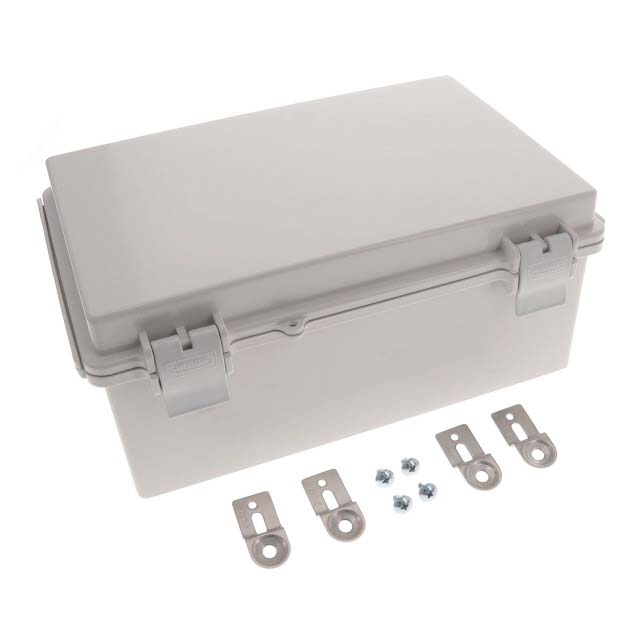

PLASTIC ENCLOSURE, SOLID DOOR, GASKET, WALL MOUNT, ABS, 129.8 MM, 200 MM, 300 MM, IP66
NBF-32016
ActiveBUD INDUSTRIES
PLASTIC ENCLOSURE, SOLID DOOR, GASKET, WALL MOUNT, ABS, 129.8 MM, 200 MM, 300 MM, IP66
Description
General part information
NBF-32016
Box Plastic, ABS Gray Hinged Door, Lid 11.810" L x 7.870" W (299.97mm x 199.90mm) X 5.110" (129.79mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NBF-32016 |
|---|---|
| Area (L x W) | 92.9 in² |
| Color | Gray |
| Container Type | Box |
| Design | Lid, Hinged Door |
| Features | Non-Metallic Hinges, PCB Supports |
| Height | 5.11 in |
| Material | ABS, Plastic |
| Material Flammability Rating | UL94 HB |
| Ratings | 13, NEMA 1, 12, 2, IP66, 4, 4X |
| Size / Dimension Length | 11.81 in |
| Size / Dimension Width | 7.87 in |
| Thickness | 0.145 in |
| Weight | 2 lbs |
