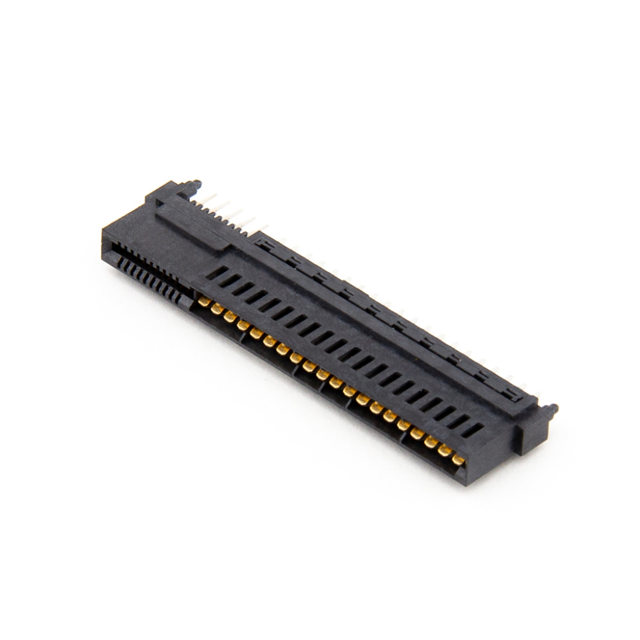

9302-2A1S24P11ACB30DA
ActiveOupiin
CONN EDGE DUAL FMALE 60POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
9302-2A1S24P11ACB30DA
ActiveOupiin
CONN EDGE DUAL FMALE 60POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9302-2A1S24P11ACB30DA |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze, Copper |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 60 |
| Number of Positions [custom] | 36 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.97 | |
| 150 | $ 7.47 | |||
| 300 | $ 6.88 | |||
| 450 | $ 5.98 | |||
| 600 | $ 4.49 | |||
Description
General part information
9302-2A1S24P11ACB30DA
60 (24 + 36 Power) Position Female Connector Non Specified - Dual Edge Gold Black
