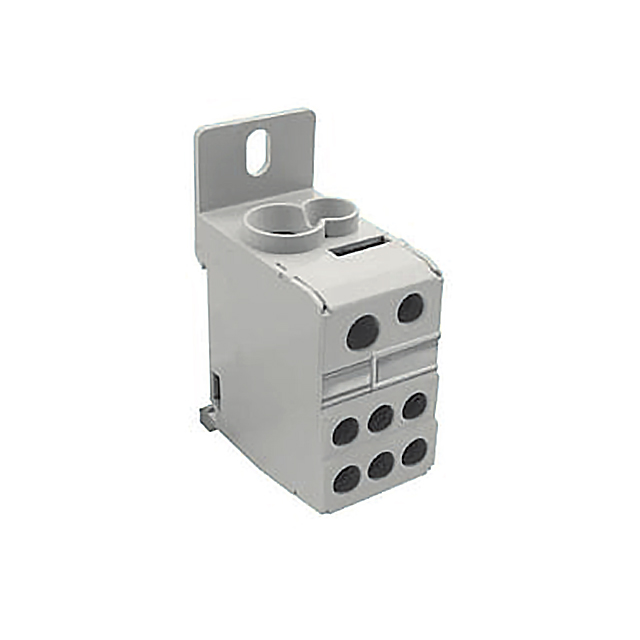

DB35
ActiveAltech Corporation
DIN RAIL TERMINAL BLOCKS INPUT 1X2 AWG OUTPUT 6X6AWG
DB35
ActiveAltech Corporation
DIN RAIL TERMINAL BLOCKS INPUT 1X2 AWG OUTPUT 6X6AWG
Description
General part information
DB35
1 Pole Power Distribution Block 115 A 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | DB35 |
|---|---|
| AC Outlets (Count) | 6 count |
| Approval Agency | UR, CE |
| Connector - AC Input | Screw Terminals |
| Connector - AC Output | Screw Terminals |
| Current - Max | 115 A |
| Current Rating | 115 A |
| Housing Material | Plastic |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Size (Max) | 8 AWG |
| Line Side Wire Size (Min) | 2 AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 6 |
| Load Side Wire/Stud Size (AWG) (Max) | 14 AWG |
| Load Side Wire/Stud Size (AWG) (Min) | 4 AWG |
| Mounting Type | DIN Rail, Panel |
| Number of Poles | 1 |
| Overload Protection | None |
| Region Utilized | International |
| Type | PDU (Power Distribution Unit), Power Distribution Block |
| Voltage - Input | 600 V |
| Voltage - Rated | 600 V |
