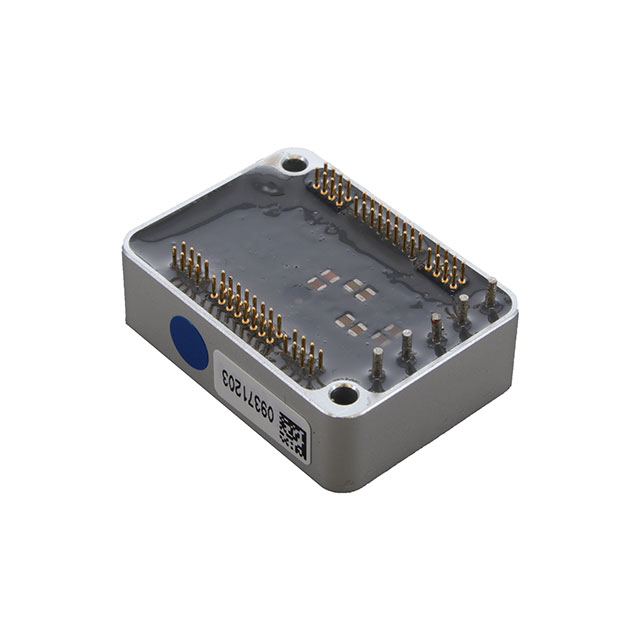

TMCM-1617-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
SERVO DRIVE 18A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCM-1617-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
SERVO DRIVE 18A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1617-CANOPEN | TMCM-1617 Series |
|---|---|---|
| Accessory Type | - | Base Board |
| Control / Drive Type | Servo DC | Servo DC |
| Current - Output | 18 A | 18 A |
| For Use With/Related Products | - | TMCM-1617 |
| Interface | RS-485, CAN, EtherCat | RS-485, CAN, EtherCat |
| Motor Type | Brushless (BLDC) | Brushless (BLDC) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Type | Module | Module |
| Voltage - Supply | 24 VDC | 24 VDC |
| Voltage - Supply | - | 28 V |
| Voltage - Supply | - | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 584.22 | |
TMCM-1617 Series
SERVO DRIVE 18A 24V
| Part | Interface | Current - Output | Mounting Type | Motor Type | Control / Drive Type | Type | Voltage - Supply | Voltage - Supply [Max] | Voltage - Supply [Min] | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1617-CANOPEN | CAN, EtherCat, RS-485 | 18 A | Chassis Mount | Brushless (BLDC) | Servo DC | Module | 24 VDC | ||||
Analog Devices Inc./Maxim Integrated TMCM-1617-TMCL | CAN, EtherCat, RS-485 | 18 A | Chassis Mount | Brushless (BLDC) | Servo DC | Module | 28 V | 8 V | |||
Analog Devices Inc./Maxim Integrated TMCM-1617-BB | TMCM-1617 | Base Board |
Description
General part information
TMCM-1617 Series
Servo DC 24VDC Supply 18A Load
