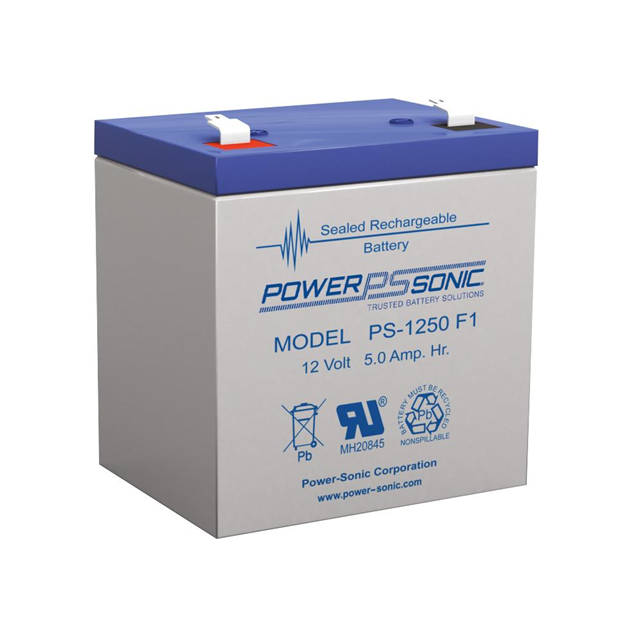

PS-1250 F1
ActivePower Sonic
BATTERY LEAD ACID 12V 5AH
PS-1250 F1
ActivePower Sonic
BATTERY LEAD ACID 12V 5AH
Description
General part information
PS-1250 F1
12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 5Ah
Technical Specifications
Parameters and characteristics for this part
| Specification | PS-1250 F1 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity (Charge) | 5 Ah |
| Discharge Rate (Time) | 20 Hrs |
| Size / Dimension Height | 3.98 in |
| Size / Dimension Length | 3.54 in |
| Size / Dimension Width | 2.76 in |
| Standard Charge Current | 250 mA |
| Standard Charge Time | 20 Hrs |
| Termination Length | 0.187 in |
| Termination Style | Spade |
| Voltage - Rated | 12 VAC |
