Description
General part information
52SC6AEA2

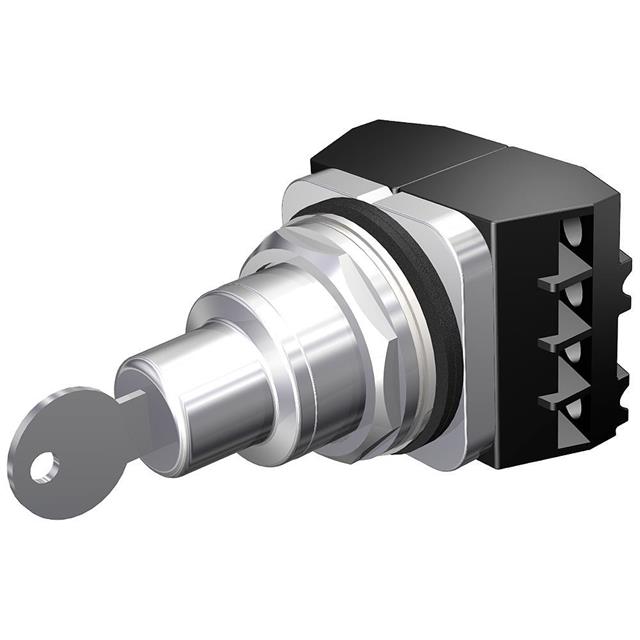

Keylock Switch 2 Position 4PST-2NO/2NC 60A 110 VAC DC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 52SC6AEA2 |
|---|---|
| Actuator Type | Flat Key |
| Circuit | 4PST-2NO/2NC |
| Current Rating | 60 A |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -35 °C |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Removable Positions | All |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 110 V |
