0409-201-2400

Active

TE Connectivity Deutsch Connectors

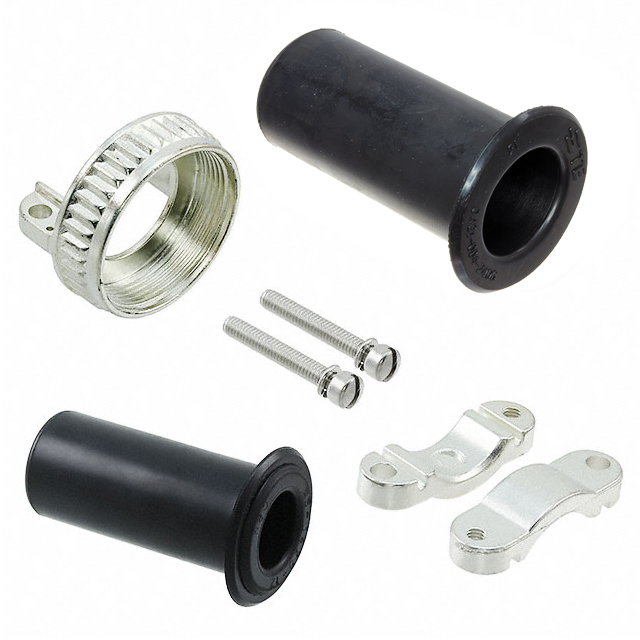

CONN CAB CLAMP SZ24 1 7/16-18

Search across all available documentation for this part.

Active

TE Connectivity Deutsch Connectors

CONN CAB CLAMP SZ24 1 7/16-18

Technical Specifications

Parameters and characteristics for this part

Specification	0409-201-2400

Cable Exit	180 °
Cable Opening [custom]	24.08 mm
Cable Opening [custom]	0.948 in
Color	Silver
Diameter - Outside [diameter]	1.688 "
Diameter - Outside [diameter]	42.88 mm
Features	Clamp Screws, Bushing
For Use With/Related Products	HD30 Series Connectors
Plating	Tin
Shell Size - Insert	24
Shielding	Unshielded
Thread Size	1 7/16-18 UNEF
Type	Cable Clamp

CONN CAB CLAMP SZ24 1 7/16-18

Part	Cable Opening [custom]	Cable Opening [custom]	Cable Exit	Color	Thread Size	Shell Size - Insert	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Plating	Type	Features	Shielding
TE Connectivity Deutsch Connectors 0409-201-2400	24.08 mm	0.948 in	180 °	Silver	1 7/16-18 UNEF	24	1.688 "	42.88 mm	HD30 Series Connectors	Tin	Cable Clamp	Bushing, Clamp Screws	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Silver Connector Cable Clamp 1 7/16-18 UNEF 24
