Description
General part information

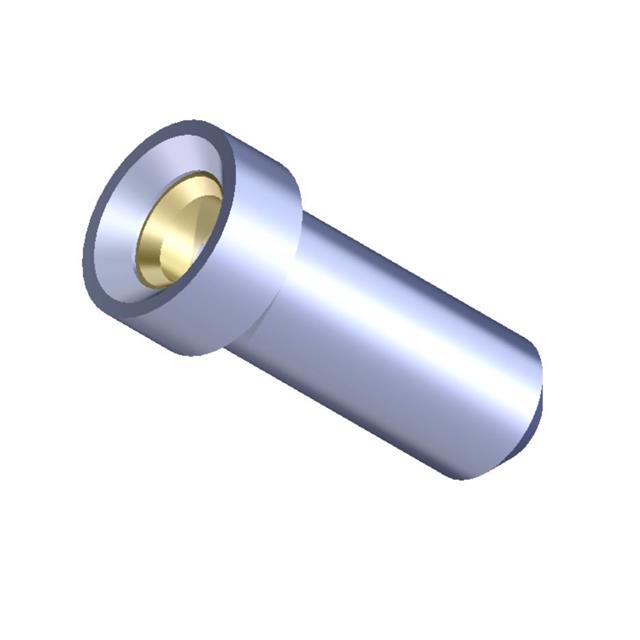

01401-83-3010
Pin Receptacle Connector No Tail Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 01401-83-3010 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 5 µin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 0.072 in |
| Insertion Force | 2 N |
| Length - Overall | 0.165 in |
| Pin Hole Diameter | 0.051 in |
| Socket Depth | 0.146 in |
| Tail Diameter | 0.041 in |
| Tail Type | No Tail |
| Termination | Solder |
