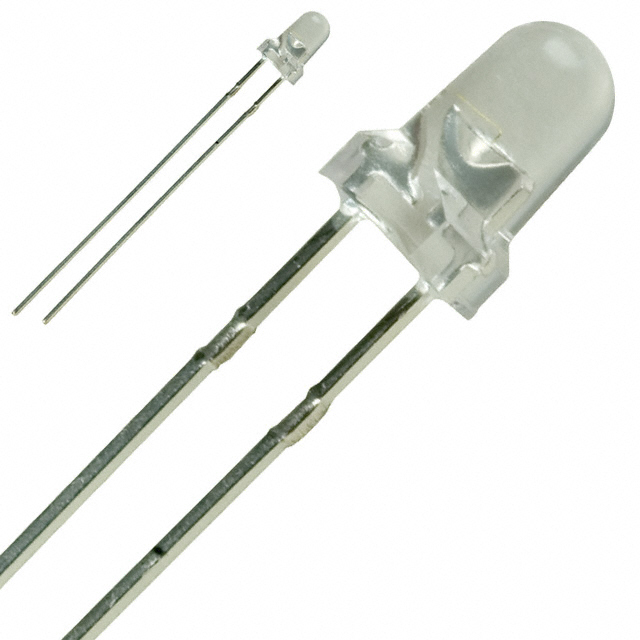

DG3803X
ObsoleteStanley Electric Co
LED GREEN CLEAR 3MM ROUND T/H
DG3803X
ObsoleteStanley Electric Co
LED GREEN CLEAR 3MM ROUND T/H
Description
General part information
DG3803X
Green 525nm LED Indication - Discrete 3.5V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DG3803X |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 5.9 mm |
| Lens Color | Colorless |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 1200 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Dimension | 3 mm |
| Package Name | 3mm Round |
| Package Shape | Round |
| Supplier Device Package Shape | Round |
| Supplier Device Package Size | 3 mm |
| Viewing Angle | 20 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 522 nm |
