MVU10-14FLK

Active

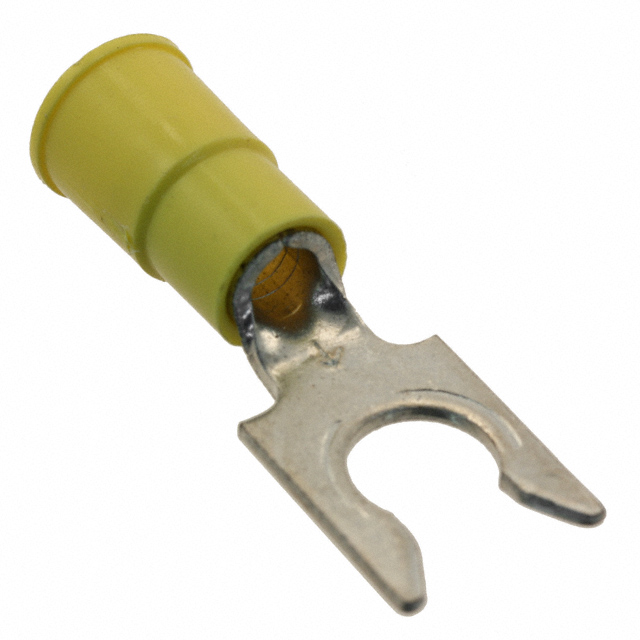

FORK TERMINAL 10-12AWG ELECTROLYTIC COPPER YELLOW 31.49MM TIN CASE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MVU10-14FLK

Active

FORK TERMINAL 10-12AWG ELECTROLYTIC COPPER YELLOW 31.49MM TIN CASE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MVU10-14FLK	MVU10 Series

Color	Yellow	Yellow
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Butted Seam	Butted Seam
Gender	-	Male
Insulation	Insulated	Insulated, Fully Insulated, Non-Mating End Insulated
Insulation Diameter	0.25 "	0.25 "
Insulation Diameter	6.35 mm	6.35 mm
Length - Overall	-	26.16 - 26.67 mm
Length - Overall [x]	1.24 in	0.98 - 1.26 in
Length - Overall [x]	31.5 mm	24.89 - 32 mm
Length - Ring Center to Termination	-	0.28 - 0.29 in
Length - Ring Center to Termination	-	7.11 - 7.37 mm
Length - Ring Center to Termination [x]	0.44 in	0.44 in
Length - Ring Center to Termination [x]	11.18 mm	11.18 mm
Length - Termination	13.97 mm	13.97 mm
Length - Termination	0.55 in	0.55 in
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	Varies by Wire Size
Number of Wire Entries	-	2
Stud/Tab Size	0.25 Stud	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud, 3/8 Stud
Tab Thickness	-	0.032 in
Tab Thickness	-	0.81 mm
Tab Width	-	6.35 mm
Tab Width	-	0.25 in
Terminal Type	Snap, Spring	Standard, Circular, Snap, Spring, Inline, Individual Openings (Parallel), Flanged, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.04 in
Thickness	-	1.02 mm
Width - Outer Edges	-	9.65 mm
Width - Outer Edges	-	0.38 "
Width - Outer Edges	-	13.46 mm
Width - Outer Edges [y]	0.43 "	0.28 - 0.54 in
Width - Outer Edges [y]	10.92 mm	7.11 - 13.72 mm
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

MVU10 Series

CONN SPADE TERM 10-12AWG #8 50PC

Part	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Features	Insulation Diameter	Insulation Diameter	Length - Ring Center to Termination	Length - Ring Center to Termination	Insulation	Length - Termination	Length - Termination	Color	Material - Insulation	Length - Overall [x]	Length - Overall	Contact Finish	Stud/Tab Size	Contact Material	Terminal Type	Mounting Type	Thickness	Thickness	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges	Width - Outer Edges [y]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Number of Wire Entries
3M MVU10-8FX-BOTTLE	12 AWG	10 AWG	9.65 mm	0.38 "	Crimp	Butted Seam	0.25 "	6.35 mm	0.29 in	7.37 mm	Insulated	13.97 mm	0.55 in	Yellow	Vinyl	1.03 in	26.16 mm	Tin	8 Stud	Copper, ETP	Standard	Free Hanging (In-Line)
3M MVU10-516R/SK	12 AWG	10 AWG			Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	1.26 in		Tin		Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm	32 mm	0.3125 Stud	0.53 in	13.46 mm
3M MVU10-8RX-BOTTLE	12 AWG	10 AWG	9.65 mm	0.38 "	Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	1.03 in	26.16 mm	Tin	8 Stud	Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm
3M MVU10-38RX-BOTTLE	12 AWG	10 AWG			Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	1.26 in		Tin	3/8 Stud	Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm	32 mm		0.54 in		13.72 mm
3M MVU10-14FLK	12 AWG	10 AWG			Crimp	Butted Seam	0.25 "	6.35 mm			Insulated	13.97 mm	0.55 in	Yellow	Vinyl	1.24 in		Tin		Copper, ETP	Snap, Spring	Free Hanging (In-Line)			31.5 mm	0.25 Stud	0.43 "		10.92 mm	0.44 in	11.18 mm
3M MVU10PCK	12 AWG	10 AWG			Crimp						Fully Insulated			Yellow							Inline, Individual Openings (Parallel)											Varies by Wire Size
3M MVU10-10FBK	12 AWG	10 AWG			Crimp	Butted Seam	0.25 "	6.35 mm	0.29 in	7.37 mm	Insulated	13.97 mm	0.55 in	Yellow	Vinyl	1.03 in	26.16 mm	Tin		Copper, ETP	Standard	Free Hanging (In-Line)				10 Stud	0.32 in		8.13 mm
3M MVU10-4R/SK	12 AWG	10 AWG			Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	0.98 in		Tin		Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm	24.89 mm	4 Stud	0.28 in		7.11 mm
3M MVU10-38R/SK	12 AWG	10 AWG			Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	1.26 in		Tin	3/8 Stud	Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm	32 mm		0.54 in		13.72 mm
3M MVU10-10RX	12 AWG	10 AWG	9.65 mm	0.38 "	Crimp		0.25 "	6.35 mm			Insulated			Yellow	Vinyl	1.03 in	26.16 mm	Tin		Copper, ETP	Circular	Free Hanging (In-Line)	0.04 in	1.02 mm		10 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.46
		10	$ 1.11
		25	$ 1.00
		50	$ 0.92
		100	$ 0.86
		250	$ 0.77
		500	$ 0.72
		1000	$ 0.67
		2500	$ 0.61

Description

General part information

MVU10 Series

Yellow 1/4 Stud Spade Terminal Connector Crimp 10-12 AWG
