2299287-1 - 2299287-1

2299287-1

Active
TE Connectivity Raychem Cable Protection

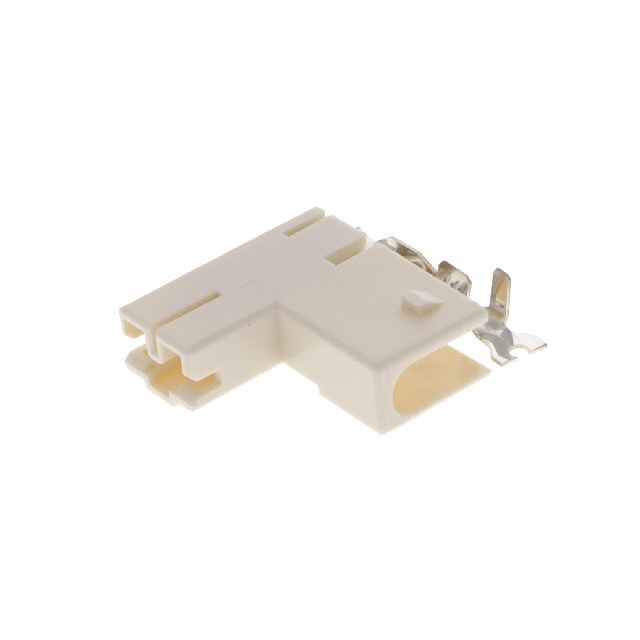

QUICK DISCONNECT TERMINAL, PRE-INSULATED, FLAG, POD-LOK 187 SERIES, FEMALE QUICK DISCONNECT

Deep-Dive with AI

Search across all available documentation for this part.

2299287-1 - 2299287-1

2299287-1

Active
TE Connectivity Raychem Cable Protection

QUICK DISCONNECT TERMINAL, PRE-INSULATED, FLAG, POD-LOK 187 SERIES, FEMALE QUICK DISCONNECT

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification2299287-1
Contact FinishTin
Contact MaterialBrass
GenderFemale
InsulationMating End Insulated
Insulation Diameter [Max] [diameter]2.79 mm
Insulation Diameter [Max] [diameter]0.11 "
Insulation Diameter [Min] [diameter]1.52 mm
Insulation Diameter [Min] [diameter]0.06 in
Mounting TypeFree Hanging (In-Line), Right Angle
Tab Thickness0.02 "
Tab Thickness0.51 mm
Tab Width4.75 mm
Tab Width0.187 in
Terminal TypeFlag, Angled - 90°
TerminationCrimp
Wire Gauge [Max]24 AWG
Wire Gauge [Min]20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 2400$ 0.16
4800$ 0.16
9600$ 0.15
DigikeyCut Tape (CT) 1$ 0.25
10$ 0.22
25$ 0.22
50$ 0.21
100$ 0.20
250$ 0.16
500$ 0.15
1000$ 0.14
Tape & Reel (TR) 2400$ 0.18
4800$ 0.18
7200$ 0.16
12000$ 0.14
60000$ 0.14
NewarkEach (Supplied on Cut Tape) 2500$ 0.21

Description

General part information

POD-LOK 187 Series

The pre-insulated POD-LOK receptacle terminals combine Positive Lock receptacles with Glow Wire Test (GWT), UL 94 V-0 rated housings. The result is an ergonomic, low insertion force (LIF) receptacle and integral robust housing supplied in strip form that can be crimped and applied in one quick step with an automatic applicator. POD-LOK receptacles can offer significant applied cost savings, as no secondary operation is required to apply the housings. An automated applicator crimps the receptacle to the wire and slides the housing into its installed position. The LIF receptacles offer the security of a locking feature that resists accidental disconnection, but permits relatively easy intentional extraction. The integrated housings provide insulation to help prevent shock and short hazards, and they act as a removal tool.
